Renogy 200 Watt 12 Volt Monocrystalline Solar Panel
Quote on request
Description
Specifications
Supporting Docs
Discussion Board

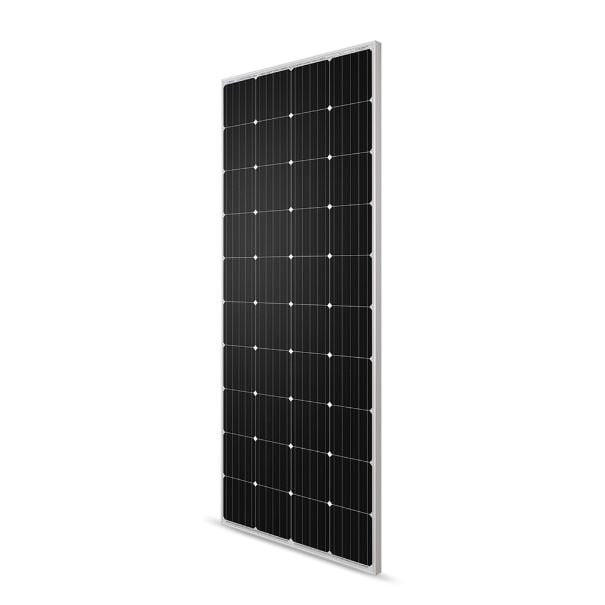

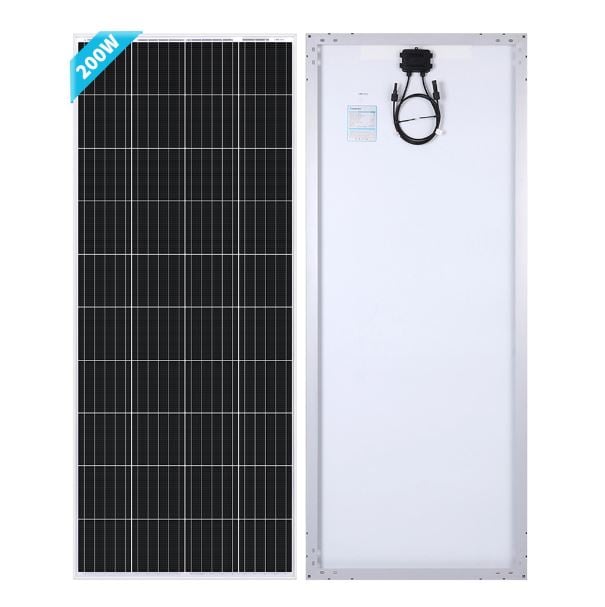

Renogy 200 Watt 12 Volt Monocrystalline Solar Panel
Notes:
- Please contact us to inquire about stock availability
- Local Pickup / Shipping can be arranged upon request

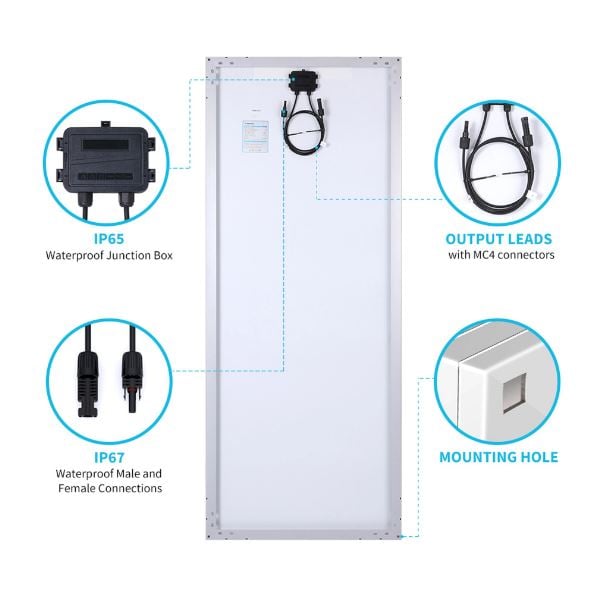

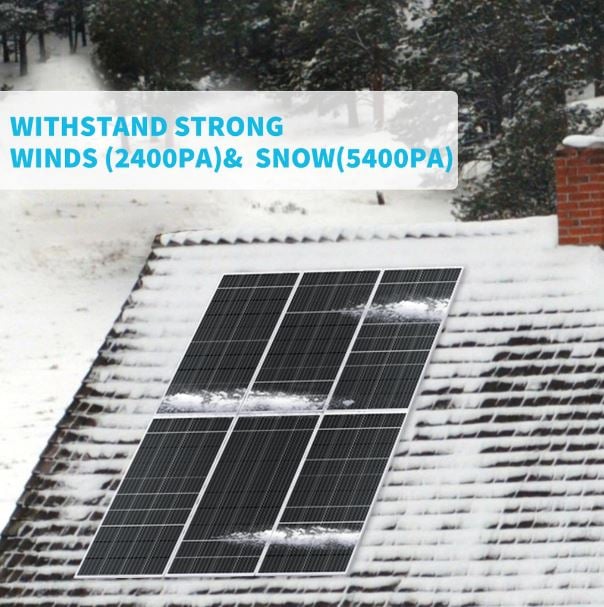

The Renogy 200 Watt 12 Volt Monocrystalline Solar Panel is the perfect component for a larger solar power (PV) system. The panel includes solar connector leads that extend from the junction box affixed to the back. The connector leads are compatible with the Renogy Solar Adaptor Kit—allowing for a quick and simple connection. Each Renogy 200W Monocrystalline Solar Panel is quality tested to ensure safety and longevity. Built durable for outdoor use, these panels are capable of withstanding heavy snow and strong wind loads. Whether you plan to use the solar panel for seaside travels to the beach or your cabin in the mountains, this panel can be a great start or addition to any Renogy off-grid system!
Key Features:
- Reliable
- Durable
- Versatile
- Installation Ready
PACKAGE INCLUDES:
- 1 x 200 Watt 12 Volt Monocrystalline Solar Panel
| SPECIFICATIONS | |
|---|---|
| Max Power at STC: 200W | Open Circuit Voltage: 27V |
| Short Circuit Current: 9.66A | Optimum Operating Voltage: 22.6 V |
Optimum Operating Current: 8.85 A | Operating Temperature: -40°F~194°F / -40℃~90℃ |
Maximum System Voltage: 600 VDC UL | Maximum Series Fuse Rating: 15A |

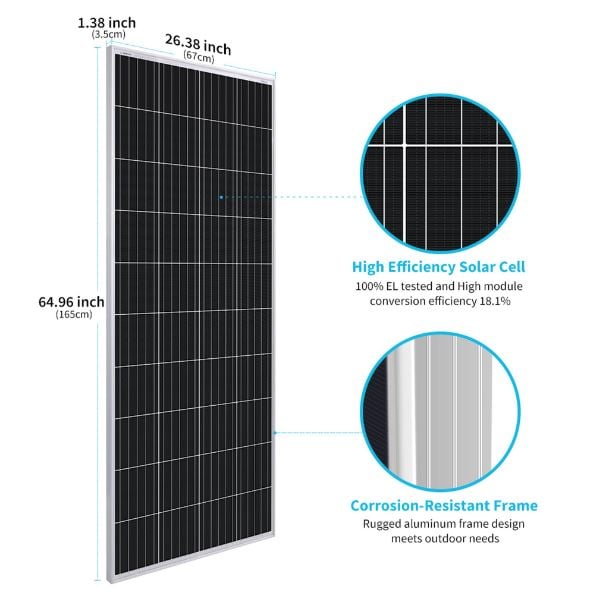

Output Cable: 14 AWG 2.95 ft (0.9m) long | Dimensions: 64.96 x 26.38 x 1.38 in / 1650 x 670 x 35mm |
| Weight: 26.46 lb (12 kg) | Solar Cells: 40 Cells (4*10) |
| Junction Box: IP65 | Connectors: Solar Connectors |
| Module Efficiency: 18.1% | Cell dimension: (158.75 x 158.75) mm / (6.25 x 6.25) in x 40 cells |
| Maximum Series Fuse Rating: 15A |
