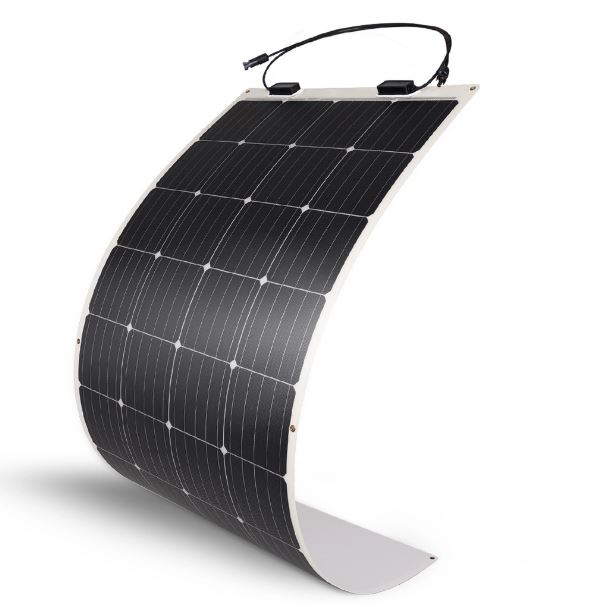

Renogy 175 Watt 12 Volt Flexible Mono Solar Panel

Renogy 175 Watt 12 Volt Flexible Mono Solar Panel

SKURNG-175DB-H-US
Shipped & sold bySunhub
ConditionNew
Available in stock0
MOQ1 Unit
Shipping Type
Quote on request

    Renogy 175 Watt 12 Volt Flexible Mono Solar Panel Detail Image 1

    Renogy 175 Watt 12 Volt Flexible Mono Solar Panel

    Notes:

    • Please contact us to inquire about stock availability
    • Local Pickup / Shipping can be arranged upon request

    Key Features:

    • Extremely Flexible: This 175W solar panel can flex up to 248 degrees, minimizing the mounting and even issues for a curved surface. Where rigid panels are inconvenient to install, get this one.
    • Ultra Lightweight: Light as 6.2 pounds, this 175W flexible panel weighs 70% less than its rigid counterpart. Reduce your burden on the road, embrace new possibilities.
    • Super Thin Lamination: This Renogy 175W flexible panel is only 0.08 inches thick! It is about 95% thinner than its rigid counterpart, ideal for a stealthy solar setup.
    • Weather Resistance: Designed to withstand extreme wind of up to 2400Pa and snow loads of up to 5400Pa. Reliable in harsh environments. Back up your brave journey.
    • Easy Installation: Six metal reinforced mounting holes, simple to install. You can also mount it with silicone structural adhesive.

    PACKAGE INCLUDES:

    • 1 x 175 Watt 12 Volt Monocrystalline Solar Panel
    BUILT-IN COMPONENTS

    175 Watt Flexible Monocrystalline

    Solar Panel

    		Output Cables:  12 AWG (2.30 ft)

    Cell Type:  Monocrystalline

    (6.17 x 6.17 in)

    		Number of Cells: 36 (4 x 9)
    IP68 Rated Waterproof Junction BoxIP67 Rated Waterproof Solar Connectors
    SPECIFICATIONS
    Maximum Power at STC: 175WModule Efficiency: 17.3%
    Optimum Operating Voltage (Vmp): 19.5VOpen-Circuit Voltage (Voc): 23.9V
    Optimum Operating Current (Imp): 8.89AShort-Circuit Current (Isc): 9.50 A

    Operating Temperature: -40°F to 185°F

    (-40ºC to +85ºC)

    		Maximum Series Fuse Rating: 15A
    Maximum System Voltage: 600V DC (UL)Certifications: CE, ISO

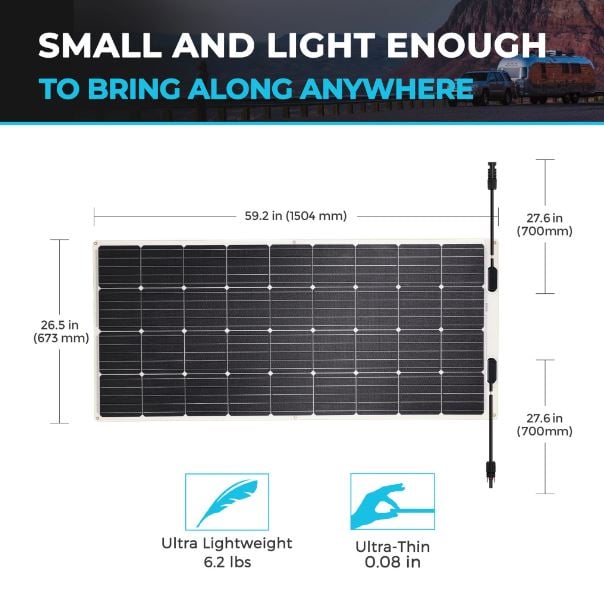

    Weight: 6.2 lbs (2.8 kg)Dimensions: 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm)

    Material and workmanship warranty:

    5 years

    		Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
