Renogy Battery Voltage Sensor with Battery Ring

Renogy Battery Voltage Sensor with Battery Ring

Notes:

• Please contact us to inquire about stock availability
• Local Pickup / Shipping can be arranged upon request

The Battery Voltage Sensor (BVS) is the perfect solution by providing a more accurate battery voltage to the controller and allowing it to adjust the charging stage more precisely resulting in overall extension of your battery life. In certain applications with long line runs, there can be a difference between the voltage measured at an MPPT/PWM solar charger’s terminals and that measured at the battery terminals. This BVS provides a more precise voltage from the battery terminals. It's a plug-and-play solution for your solar system.

Key Features

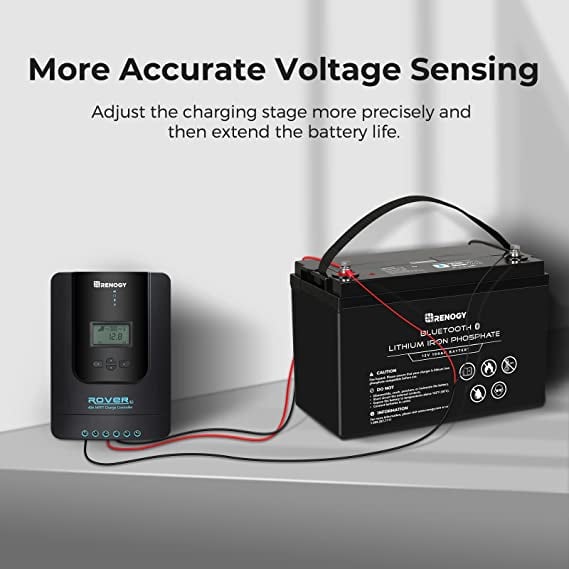

• More Accurate Voltage Sensing

 The Battery Voltage Sensor (BVS) provides a more accurate battery charging voltage to the charge controller, which allows for more precise charging stage regulation and increases overall battery performance and life.

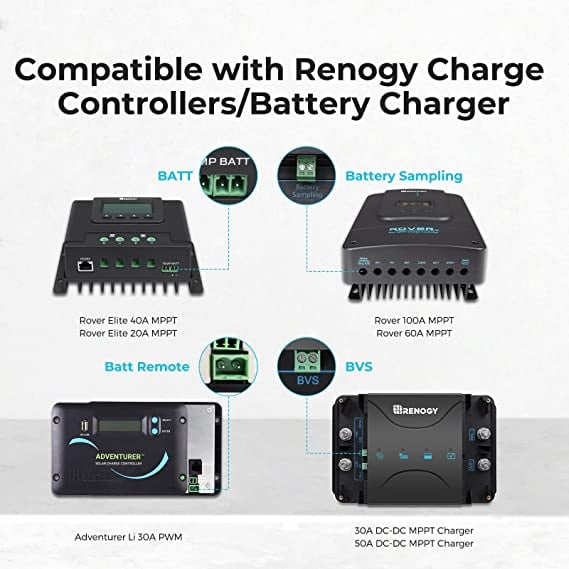

• Works with Most Charge Controllers

 Compatible with most Renogy flagship MPPT and PWM charge controllers, including Rover 60A/100A, Rover Boost 10A, Rover Elite 20A/40A, Adventurer Li 30A charge controllers as well as the 30A/50A DC-DC MPPT battery chargers.

• Compatible with Various Batteries

 Works with 12V, 24V, 36V, and 48V battery banks as well as lead-acid (Flooded, Sealed, and Gel) and lithium iron phosphate batteries.

• Simple Installation

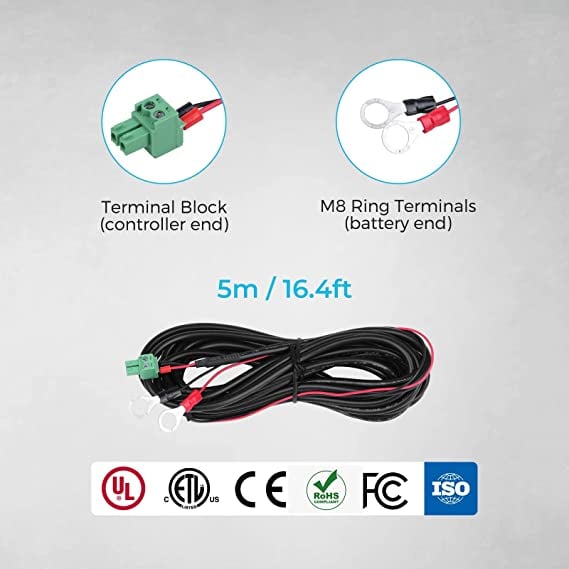

 Plug in the connector to your charge controller, connect the M8 ring terminals to your battery bank, and you're ready to go!

• Certified BVS

 Made of high-quality materials, the BVS is UL, ETL, CE, RoHS, and FCC compliant. This solar-powered device is the perfect accessory to enhance the performance of your solar solution system.
PACKAGE INCLUDES

• Battery Voltage Sensor with Battery Ring Terminals
