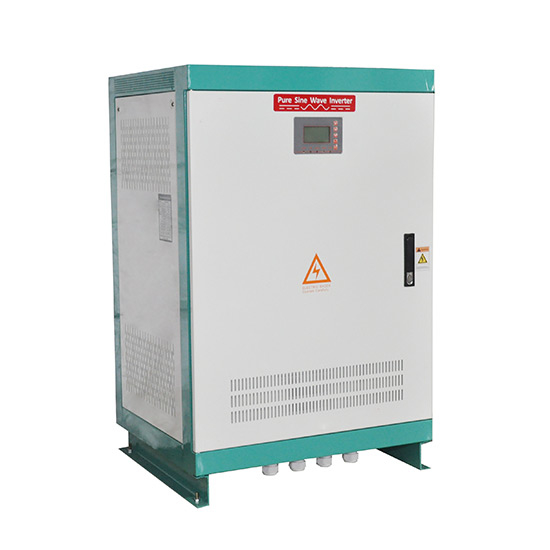

ATO-OGI-150kW Pure Sine Wave Inverter

ATO-OGI-150kW Pure Sine Wave Inverter

SKUATO-AGI-150
Shipped & sold byBruce Taylor
ConditionNew
Available in stock0
MOQ1 Unit
Shipping Type
Quote on request

    ATO Logo

    ATO-OGI-150kW Pure Sine Wave Inverter

    “Note: Returns or exchanges will not be accepted for this product after purchase.”



    150kW Product Specifications (see Power Inspection Report for  rated input & outputs) Document located  on images and documents Tab

     Units 2022 model year never installed

    Product Serial Number:BZL20211223                                                                                                                  Date: 2022-01-10

    CustomerI     ModelATO-OGI-150KW pure sinewave inverterIDC Voltage Level  I360V
    FeaturesAC Priority O,Battery Priority O, Pure InverterAC Input Single Phase□ I 3 Phase□;OutputSingle Phase□ / 3 Phase0
    ItemsKey Points and Actual Measured DataQualified



     1.  Appearance

    		1.1 ComponentsKey parts of the whole machine, such as circuit breaker, contactor, power(tube) module, inductance, LCD screen etc. Meet the requirements
    1.2 Work SkillAll Parts firm installation, even appearance, standard wiring, clear mark



    2. Input Parameters

    		2.1 DC VoltageUnder-voltage value 342 V(90%),Under-voltage recovery value Over-voltage value 500 V (130%), Over-voltage recovery value

    360

    460

    V (100%)

    V (120%)













    3. Inverter Output

    		3.1 DisplayCharacter displayed clearly, complete functions, indicator light is normal, keypad operating flexibly
    3.2 VoltageRated Output Voltage Value  208        V
    3.3 CurrentRated Output Current Value 416        A
    3.4 EfficiencyWhen input voltage is rated voltage value, test load efficiency. It's efficiency >90%
    3.5 Over-Load ProtectionWhen load power is over 125%of rated load, delay 35 seconds alarm protection
    3.6 NoiseNoise,150Db 1 meter)
    3.7 FrequencyOutput Frequency  60     Hz  (59.95 Hz~60.05Hz)
    3.8 Dynamic  responseRated load sudden increase, output voltage recovery time 40MS Fundamental period  (2)











    5. Protection Function

    		5.1 Under-Volt age ProtectionWhen input voltage below default under-voltage value and switch off: inverter should automatically stop working to be protected
    5.2 0ver-Current Protection

    When working current over the 125% of rated value (35 seconds), inverter should automatically be protected. Inverter need manually tum off DC input switch and restart, then will

    recover to normally working.


    5.3 Short-Circuit ProtectionWhen inverter output short circuit, inverter happen alarm and fault light on, when short circuit problem resolved, need manually turn off  DC input switch and restart inverter to recover normally working.

    5.4 Reverse

    Polarity Protection

    When inverter's positive input connect with battery negative pole or inverter's negative input

    connect with battery positive pole, inverter should automatically be protected. After polarity connect correctly, inverter should can normally working.









    6. Take Load Ability

    1. When input voltage and output power is rated value, environment temperature is 25° C, inverter continuous and reliable working time should not less than 24h.

    1. When input voltage is rated value, output power is 125% of rated value, inverter safety working time should not less than 35 seconds;
    1. When input voltage is rated value, output power is 150%of rated value, inverter safety working time should not less than 10 seconds;
    1. inverter should with Capacitive and inductive load impact resistance





    7. Function Check

    		7.l Starting FeatureInput rated voltage, inverter take rated load starting, run l min-shut down20s-run l min Continuously switch on/off inverter for 5 times, inverter running normally.
    7.2 Switch TimeUse oscilloscope to observe, inverter switch to mains_/ ms(< l0ms); mains switch to inverter_/_ms(<15ms)I
    7.3 Aging TestInput power 165 KW, Output power150 KW, Output efficiency 90 %,Take load aging time 4 h
    8.       Safety Requirements8.1 insulation resistanceinsulation resistance between Inverter DC input and inverter case>50 M Q
    insulation resistance between Inverter AC output and inverter case?:50 M Q



    9.

    environment test

    		9.1 low temperature working testProduct without packing. Test temperature is -5°C ±2°C,power on and add rated load for 2h, recovery 2h under standard atmospheric conditions, inverter should can normally working
    9.2 high temperature working test

    Product without packing. Test temperature is 40°C ±2°C,power on and add rated load for 2h,

    recovery 2h under standard atmospheric conditions, inverter should work normally.







    Standard Product Summary

    ModelATO-OGI-150kW
    Size (D*W*H)1000*1200*1800mm
    Weight900kg
    CertificateCE, SA, SAA, VDE

    AC InputRated input voltageUnder-voltage 342 V(90%) Under-voltage recovery value 360 V (100%) Over-voltage value ( 500 V (130%)  Over-voltage recovery 460 V  (120%)
    AC OutputRated output voltage208 V
    Rated Output current416 A
    AC OutputRated output power150kW
    Output waveformPure sine wave

    Phase3 phase 4 wire +PE wire (single phase/ split phase can be customized, please contact us by email)
    Rated phase current228A @380V AC
    Frequency60Hz
    Power factor>0.99
    Overload ability150%, 5 seconds
    Efficiency>93%
    Waveform distortion rateTHD<3%
    Dynamic response (0 to 100% load)5%, ≤50ms
    DisplayLCD
    Running modeWorking continuously
    Electrical insulation properties2000Vac, 1min
    Communication interfaceRS485 (optional), can remote control the start/stop of the inverter and convey the data as below:
    1. Input DC current
    2. Input DC voltage
    3. Output AC current
    4. Output AC voltage
    5. Power consumption (kWH)
    6. Some fault information

    Protection FunctionProtectionInput reverse polarity, under voltage, over-voltage, output over-current, short circuit, overheating
    Cooling methodFan-cooled
    Short-circuit protectionNo automatic recovery, need to restart the machine
    Working EnvironmentNoise (1 meter）≤50dB
    Degree of protectionIP20 (indoor)
    Working altitude≤2000m
    Working temperature-25~+55℃
    Relative humidity0~90%, non-condensing
