Tigo Energy 700W 1500V

Tigo Energy 700W 1500V Rapid Shutdown

**Note: Local Pickup/ Shipment can be arranged.**

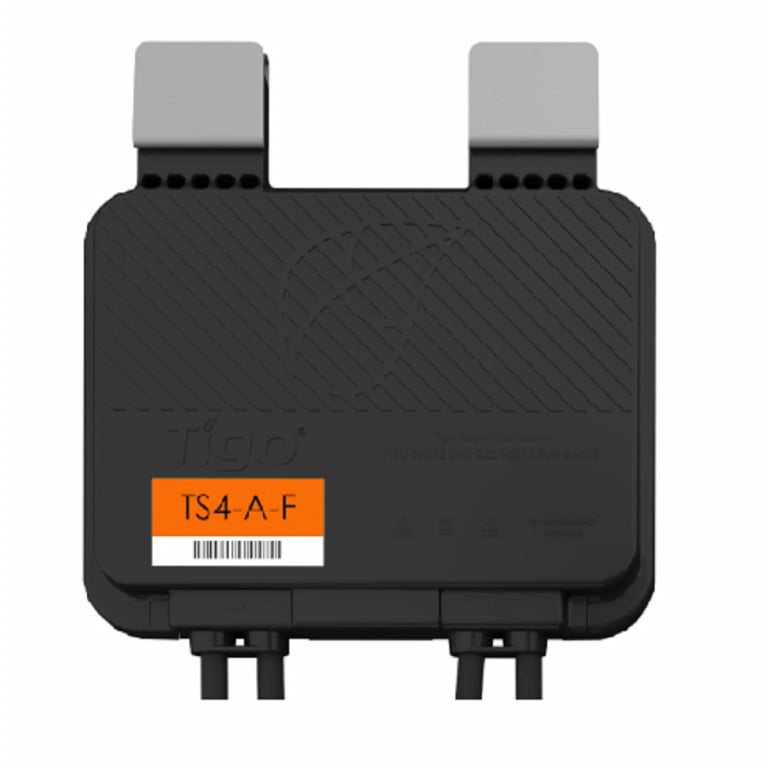

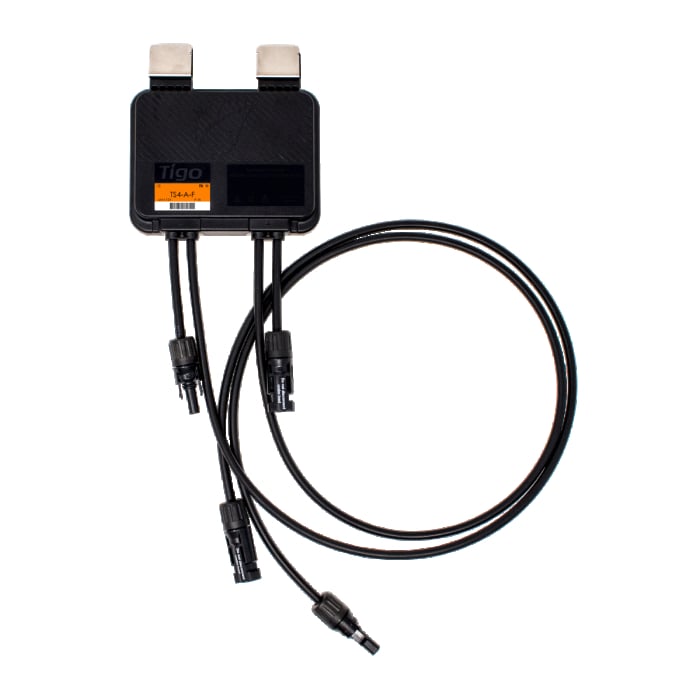

The TS4-A-F (Fire Safety) is the advanced add-on rapid shutdown solution that brings smart module functionality to standard PV modules for higher reliability. Ensure safety by upgrading existing PV systems or by adding safety features to new installations.


Key Features:

• High input current rating – Now rated for 20A Imp/ 25A Isc to better accommodate bifacial and high current modules
• Simple, Fast Installation – Snap to standard PV module frame or remove clips for rack mounting
• PLC Signaling – Rapid shutdown signaling over PV conductors
•  Automatic Shutdown – PV array enters rapid shutdown mode in the event of AC grid loss
• PVRSS Certified – Tested and certified with hundreds of top inverter models
• 25-year warranty


Product details:

• Manufacturer: Tigo Energy
• Manufacturer Part Number:  TS4-A-F
• Power Output: 700 Watts
• Voltage: 1500V
• Weight: 1.1 lb
• Dimensions(HxWxD):  5.5 x 5.4 x 0.9 in
