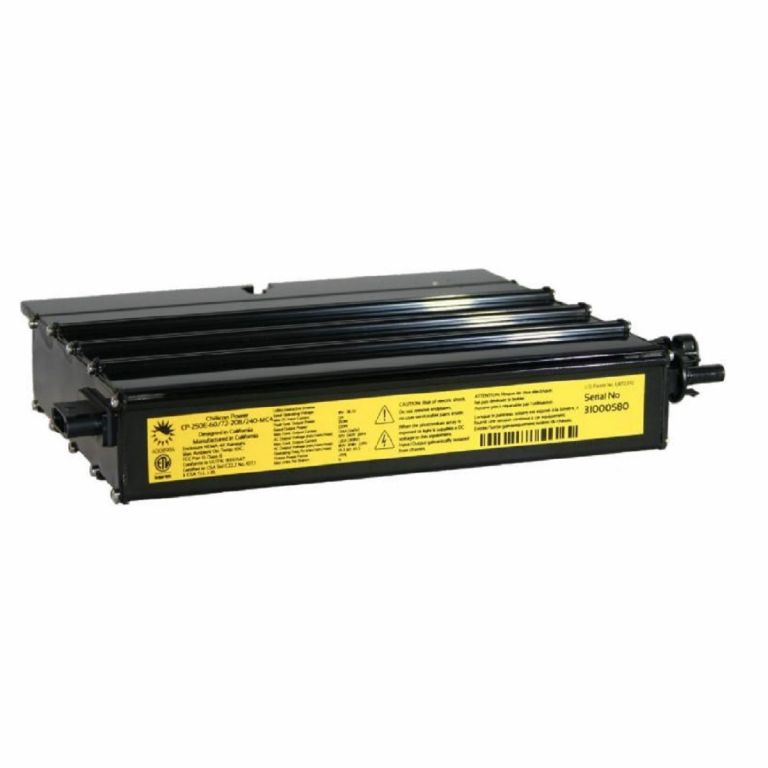

Chilicon Power 250W 208/240V Microinverter

Chilicon Power 250W 208/240V Microinverter

Note: "This item is on clearance sale. There will be no returns or exchanges on this product."

The Chilicon CP-250E allows installers to maximize PV system production, while minimizing installation and operational costs. Microinverter based architectures offer the benefit of increased flexibility in panel deployment, while also providing per panel visibility to simplify system O&M. With its all-AC approach, integrated grounding, modular bus cabling, and ability to support up to 20 panels on a 30A branch circuit, the CP-250E simplifies both design and installation. Both freq-Watt and voltWatt modes allow AC control by off-grid systems. Coupled with Chilicon’s CP-100 gateway and cloud-based monitoring software, the CP-250E can form the energy management backbone of both residential and commercial PV systems.

Key Features:

• Supports panels up to 420W
• Maximizes energy production over life of system
• Minimizes losses due to shading and debris
• Eliminates single point of failure for system
• All AC design – No string calculations needed
• No GEC needed for microinverters
• Easy installation with standardized trunk cables
• Compatible with most 60 or 72 cell panels
• Allows for variable module placement
• Self supply mode (zero-export)
• Supports up to 30A branch circuits
• Up to 20 panels possible on one branch circuit

Product Details:

• Manufacturer Part Number: GEN-CP2CP250EIBC
• Power Output: 250 Watts
• Voltage: 208 Volt 240 Volt
• Manufacturer Warranty: 25 Years
• Weight: 3.4 lb
• Dimensions: 12 x 8 x 1.8 in
