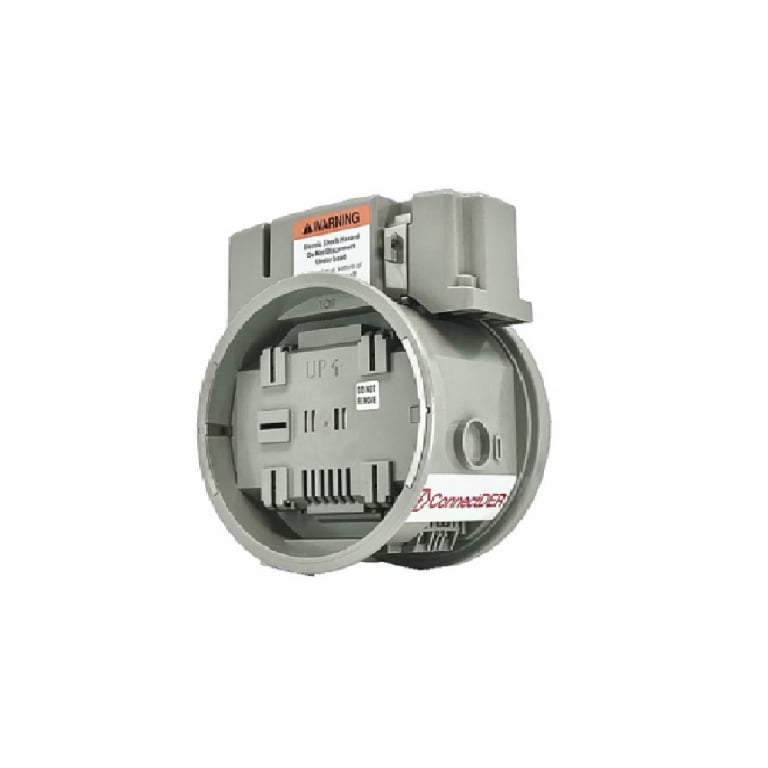

ConnectDER Solar Meter Socket 240V 60A Adapter

ConnectDER Solar Meter Socket 240V 60A Adapter

ConnectDER Meter Socket Adapter (MSA), V5.2 C-B-5, 60A, 22k Fault Current Rating

The ConnectDER™ Solar Meter Socket Adapter (MSA) is designed to rapidly connect grid-ready solar PV assets to the home. The adapter is UL-listed, NEC compliant, and a low-cost alternative to traditional installation methods.

Key Features:

• Interconnection for Residential Solar PV
• Eliminates main panel upgrades (MPU), reduces costs, and standardizes safe, efficient installations
• Tool-free junction box removal provides easier access to meter socket for inspection and allows for safe removal by emergency personnel
• Reversible junction box with conduit entry from either side of the MSA
• Ability to interconnect Solar PV without entering the premises or accessing the main panel
• Compatible with most residential meter sockets, including lever and horn bypass
• Integrated overcurrent protection device for Solar PV (80A, 22k AIC maximum)
• Suitable for use as service equipment

Product Details:

• Mfr Part Number: C-B-5-22-60
• Max Power : 15.36 kW AC
• Max Voltage: 240V
• Weight: 4.1 lb
• Dimensions: 4.6 x 7 x 8.6 in
• Pallet Qty: 75 Pcs
