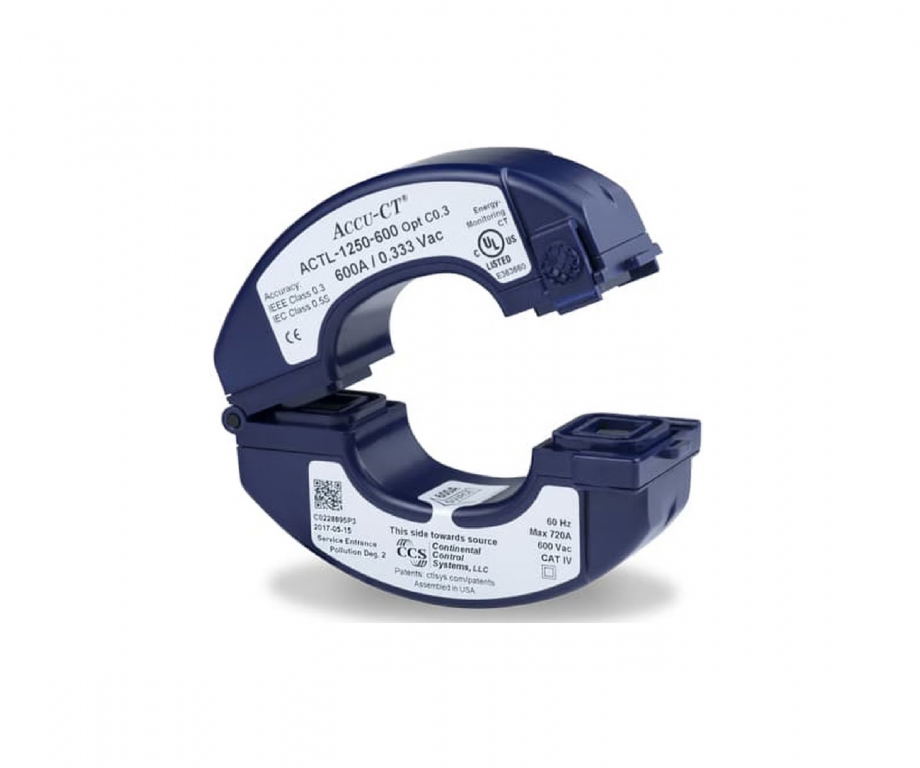

Continental Control Systems 600A Split Core Current Transformer

Continental Control Systems 600A Split Core Current Transformer

ACTL-1250-600 C0.2 - 1.25" 600A, 0.2% split-core CT

Product Features:

• Rated currents: 150, 250, 300, 400, and 600 amps
• Excellent gain and phase performance
• Integral burden resistor, no shorting block needed
• Optional revenue-grade: 0.5% accuracy
• Opening: 1.77 x 1.26 in. (45.0 x 32.0 mm)
• Handles two 350 kcmil or one 750 kcmil conductor
• Can be wired in paralle
• UL Listed (UL 2808, XOBA)
• A certificate of calibration is available upon request

Product Details:

• Manufacturer Part Number: ACTL-1250-600 C0.2
• Weight: 1 lb
• Dimensions: 15 x 10 x 4 in
• Case Qty: 12
