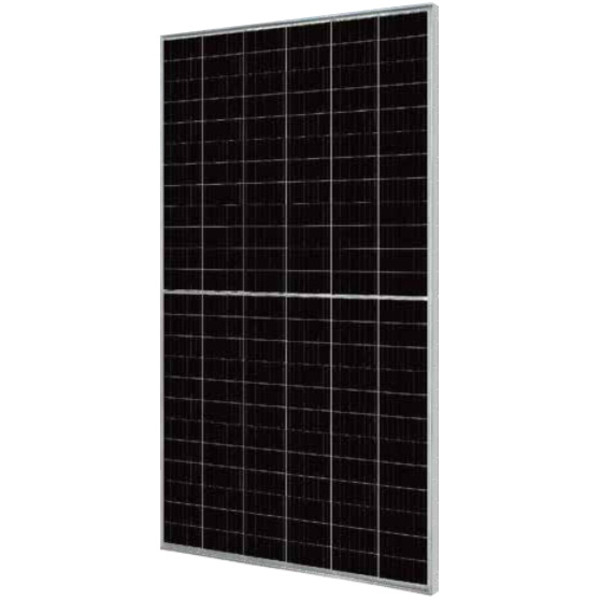

JA Solar 405W S10 Mono PERC 144 Half Cell Module

JA Solar 405W S10 Mono PERC 144 Half Cell Module


JA Solar 405w S10 Mono PERC 144 half cell module: 9BB, Silver Frame, White Backsheet. Split mid-mounted J-Box with MC4 1500V connectors on 1200mm cables.

JA Solar's S10 Series modules are powered by high-efficiency PERCIUM mono cells. These modules include five busbar cell design, which improves low light performance. S10 module dimensions are slightly larger than the previous S09 Series and has mid mounted split J-Box technology. Built with MC4 Connectors rated for 1500V DC, module rated for 20A Max Series Fuse.


Additional Features

• Higher power output
• Better temperature-dependent performance
• Reduced shading effect on the energy generation
• Lower risk of hot spot
• Enhanced tolerance for mechanical loading.
• Supplied with MC4 connectors

Product Specifications

• Manufacturer Part Number: JA-JAM72-S10-405MR w MC4 and VINA Cell
• Power Output: 405 Watts
• 72 Cell, Monocrystalline
• 40mm Depth, Silver Frame, White Backsheet
• 1500 Volts Max Voltage
• Manufacturer Warranty: 12 Years
• Performance Warranty: 25
• Shipping Weight: 49.92 lb
• Shipping Dimensions: 78.3 x 40 x 1.57 in
• Pallet Qty: 27
