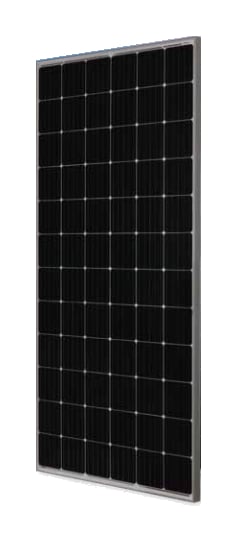

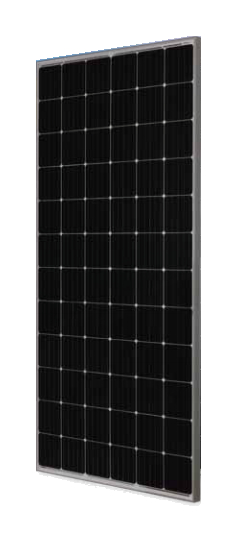

JA Solar 385w Mono PERC 72-cell module

JA Solar 385w PERC Mono Solar Panels

JA Solar 385w S09 Mono PERC 72-cell module. 5 BusBars, 1500V, 40mm Silver Frame, White back sheet, QC4 Connectors.

JA Solar's S09 Series modules are powered by high-efficiency PERCIUM mono cells. These modules include five busbar cell design, which improves low light performance. JA solar modules with the -V designation include square cut VINA cells, which cover a larger portion of the panel surface area, leaving less of the white backsheet visible. These modules include five busbar cell design, which improves low light performance. Built with QC4 Connectors rated for 1500V DC, module rated for 20A Max Series Fuse.


Additional Features

Higher power output

Better temperature-dependent performance

Reduced shading effect on the energy generation

Lower risk of hot spot

Enhanced tolerance for mechanical loading.

This product is supplied with QC 4.10-35 connectors


Product Specifications

• Manufacturer Part Number: JAM72S09-385/PR w MC4 and VINA Cell
• Power Output: 385 Watts
• 72 Cell, Monocrystalline
• 40mm Depth, Silver Frame, White Backsheet
• 1000 Volts Max Voltage
• Manufacturer Warranty: 12 Years
• Performance Warranty: 25
• Shipping Weight: 49.92 lb
• Shipping Dimensions: 78.3 x 40 x 1.58 in
• Pallet Qty: 27
