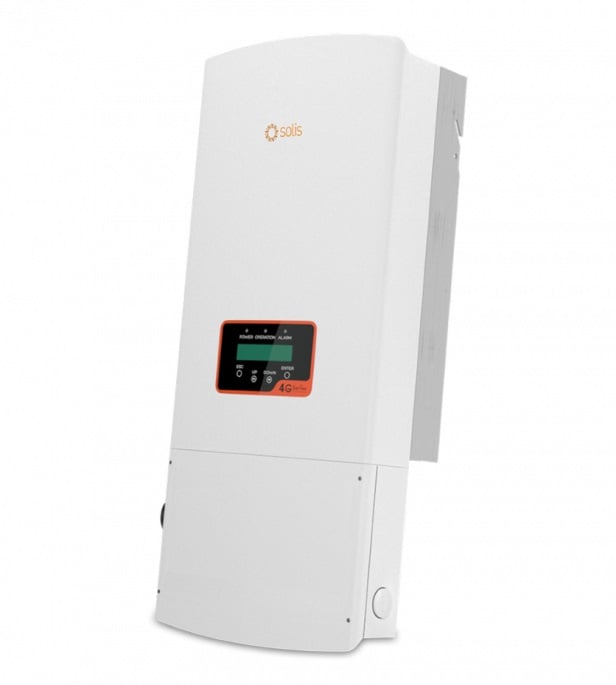

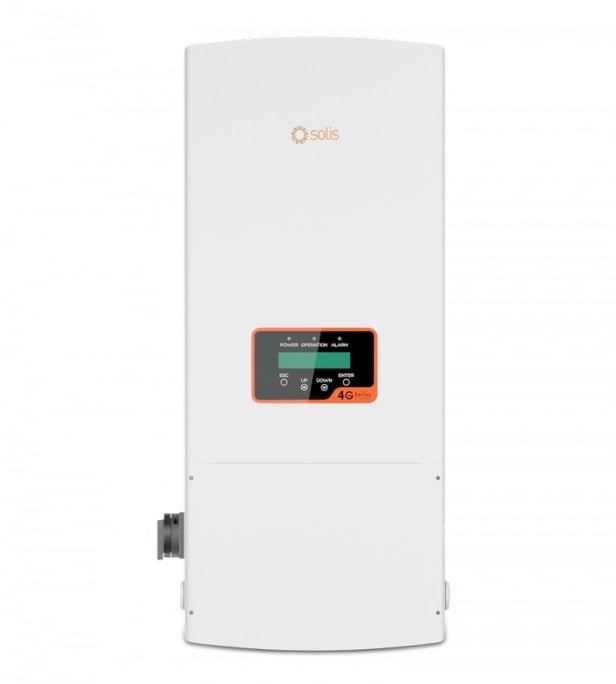

Solis 3.6kW Single Phase String Inverter Dual MPPT

Solis 3.6kW Single Phase String Inverter Dual MPPT 208/240VAC

with internal Sunspec MLRSD transmitter

Solis-1P3.6K-4G-US- 3.6KW string inverter. Fouth Generation of Solis grid-tie inverters incorporating DC Disconnect and AFCI. These NEMA 4X inverters have dual MPPT with an extremely wide operating window and come with an optional WiFi interface. MPPT range 90-520VDC, 600VDC max. UL1741 approved and CA Rule 21 Phase I-III Compliant for 208VAC single phase and 240VAC split phase. 10-year standard warranty

Features

• CA Rule 21 Phase I through III compliant and UL 1741 (SA) certified
• Sunspec communication protocol with optional cellular and Wi-Fi interface
• Built-in Sunspec Certified Module Level Rapid Shutdown Transmitter
• Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
• Fast and dynamic MPPTs and industry-leading DC voltage range
• Integrated Arc Fault Circuit Interrupt (AFCI)
• 97.8% peak efficiency (97.1% CEC efficiency)
• 10 years standard warranty with extension options

Product Details

• Manufacturer: Solis Inverters
• Weight: 33.10 lb
• Dimensions: 12.2 x 28.5 x 6.3 in
