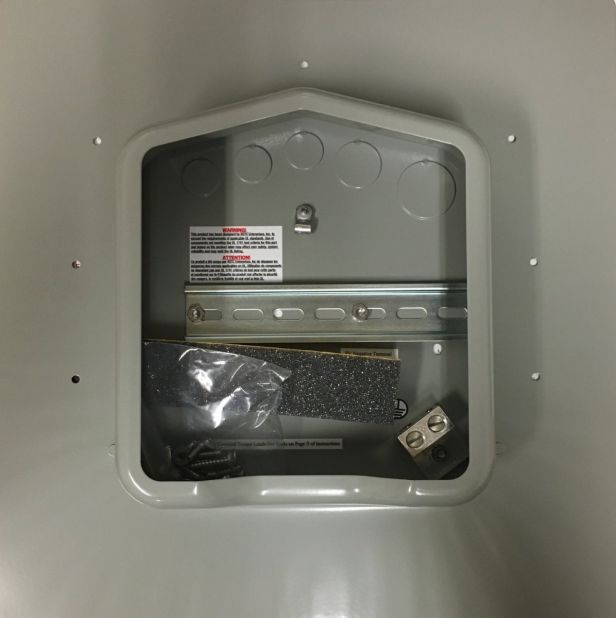

Soladeck Flashed PV Roof Mount 600VDC 120 Amp

Soladeck Flashed PV Roof Mount Combiner/Enclosure 600VDC 120 amp

Gray Soladeck flashed PV roof-mount combiner/enclosure 600VDC, 120 amp, 5 position ground block - Outdoor

Product Details

• Manufacturer: SolaDeck
• Weight: 5 lb
• Dimensions: 17.25 x 15.22 x 3 in
• 8″ Din rail installed
• ETL listed and labeled
• Conforms to the 1741 standard for multi-string combining
• Rated to the UL50 type 3R, 11th Edition standard for simple residential pass through
• CSA  C22.2 No. 290 Nema type 3R
• 1000 VDC/180 amps
• 480 VAC/60 amps
• 5 position ground block
• 20 year limited warranty
