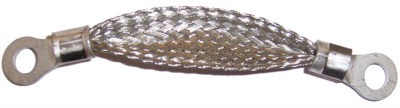

IronRidge Bonding Strap Expansion Joint

The IronRidge Integrated Grounding System bonds solar module frames directly to IronRidge Mounting Rails, eliminating the need for separate module grounding parts and procedures.


At the heart of the new system is the Grounding Mid Clamp, which uses “teeth” to pierce through the anodized coatings of both the module frame and the mounting rail. This forms a secure electrical bond that is repeated throughout the array.

The IronRidge Integrated Grounding System has been tested and certified to UL 2703 by Intertek Group and has been proven robust in grounding 60-cell and 72-cell solar modules in a range of sizes and coating thicknesses.


Product Details

• SKU: RS-GDXP-001
• Weight: 0.15
• Accessory Type: Racking
• Manufacturer: Iron Ridge
• Dimensions: 9.00 x 6.50 x 6.00 in
• Material: Tinned Copper
