OutBack Power GS Load Center for Radian Series

OutBack GS Load Center for Radian Series

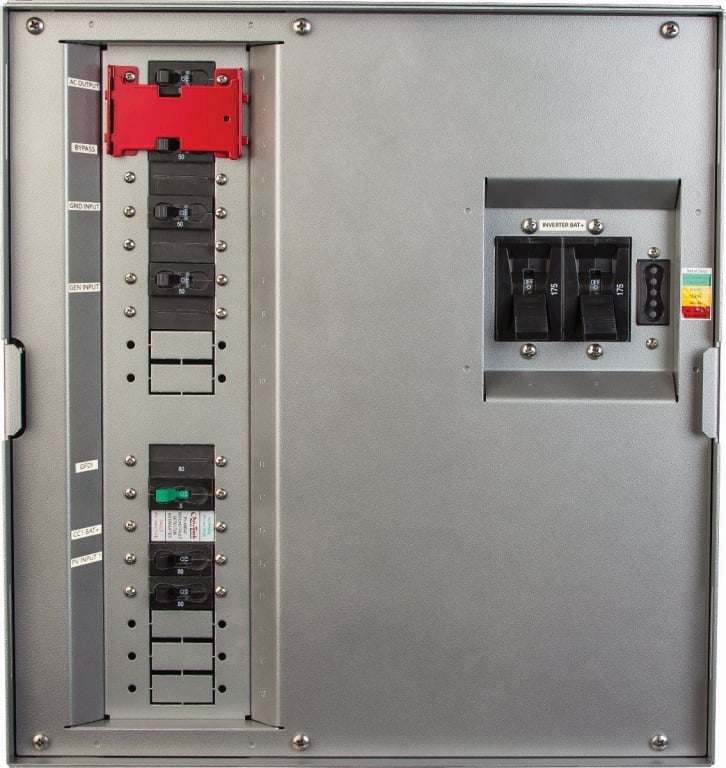

OutBack Power GS Load Center for Radian Inverter/Chargers. Includes inverter bus bars, ground bus bar, 500 Amp DC shunt assembly with negative TBB, neutral TBB and two STBB-RED bus bars. Holds up to eighteen 1 to 80A and two 175 or 250A panel mount breakers (not included)


OutBack Power’s GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.

Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-AC-120/240 can be used with AC-coupling applications in grid-tied systems.


The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.


Features

• Pre-wired or customized options for quick and easy installation
• Dual AC inputs and DC connections
• 120/240VAC and 230VAC designs
• UL 1741 end-to-end
• Greater dynamic stability
• Dual AC inputs
• Fully integrated from industry leading brand

Product Details

• SKU: GSLC
• Weight: 35 lb
• Dimensions: 17 x 16 x 8.5 in
• Accessory Type: Inverter Charger Load Center
• Manufacturer: Outback Power
