OutBack Power 120VAC 60 Amp Single Inverter Bypass Kit

OutBack Power 60 Amp 120VAC Single Inverter Input Output Bypass for FW250 Only

FW-IOB-S-120VAC Single inverter Input-Output-Bypass for FW250 only 120Vac output 60 Amp 7.2kW. Includes three 60A 120Vac single pole PANEL mount breakers.

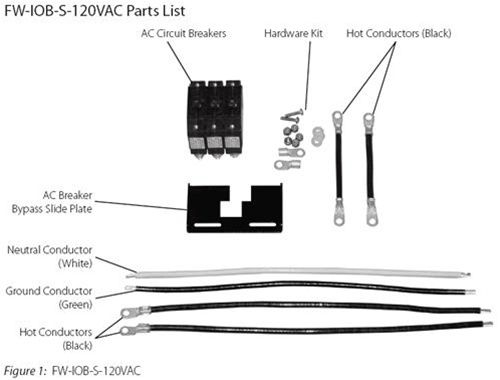

Field-installable kit for by-passing the AC input to the AC output for inverter maintenance, testing or installation. Also provides over-current protection for AC input and output. Includes three 60A 120VAC single pole PANEL mount breakers, sliding bypass interlock plate, wire and hardware kit.


Features

• System Rating: Single-Phase 120VAC 60 Amp 7.2 kW
• Bypass Breaker: One Pole @ 60 Amps 7.2 kW
• Input Breaker: One Pole @ 60 Amps 7.2 kW
• Output Breaker: One Pole @ 60 Amps 7.2 kW


Product Details

• SKU: FW-IOB-S-120VAC
• Weight: 5 lb
• Dimensions: 5.50 x 5.50 x 9.00 in
• Manufacturer: Outback Power
