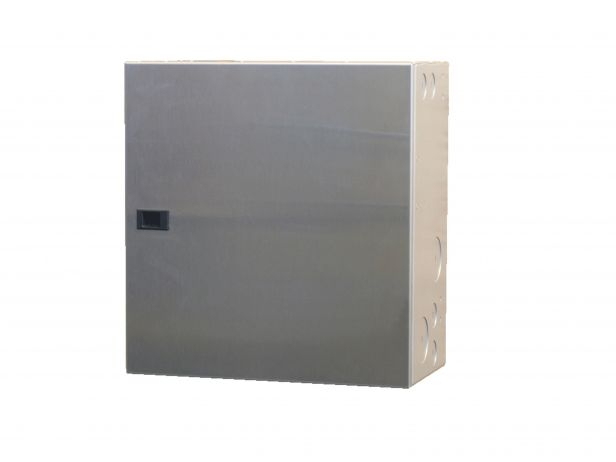

OutBack Power Prewired 300 VDC GSLC FM100 Series

Outback Prewired 300 VDC GSLC for FM100 charge controllers with two 175 Amp inverter disconnects, 120/240 VAC inverter bypass

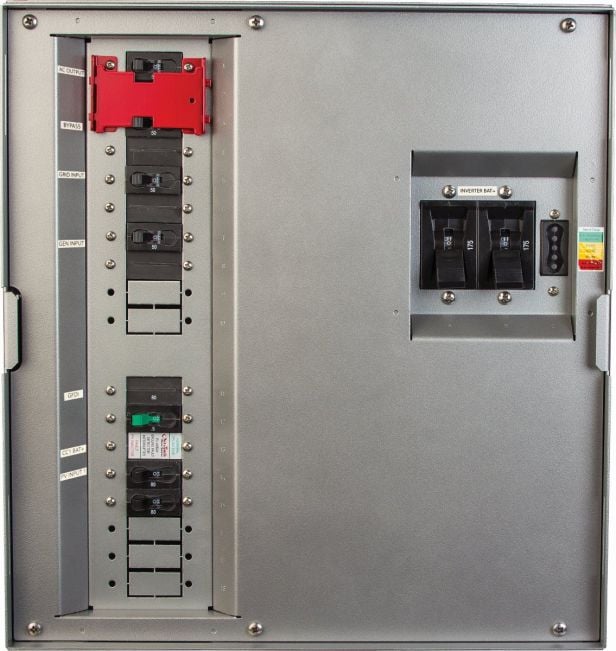

Outback Prewired 300 VDC GSLC for FM100 charge controllers with two 175 Amp inverter disconnects, 120/240 VAC inverter bypass, dual AC inputs, FLEXnet DC, two PV disconnects and three 500 Amp DC shunts (GFDI integrated in FLEXmax 100)

OutBack Power’s GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.

Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-AC-120/240 can be used with AC-coupling applications in grid-tied systems.

The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

Features

• Pre-wired or customized options for quick and easy installation
• Dual AC inputs and DC connections
• 120/240VAC and 230VAC designs
• UL 1741 end-to-end
• Greater dynamic stability
• Dual AC inputs
• Fully integrated from industry leading brand


Product Details

• SKU: GSLC-PV-300VDC
• Weight: 26 lb
• Dimensions: 17 x 16 x 8.5 in
• Accessory Type: Inverter Charger Load Center
