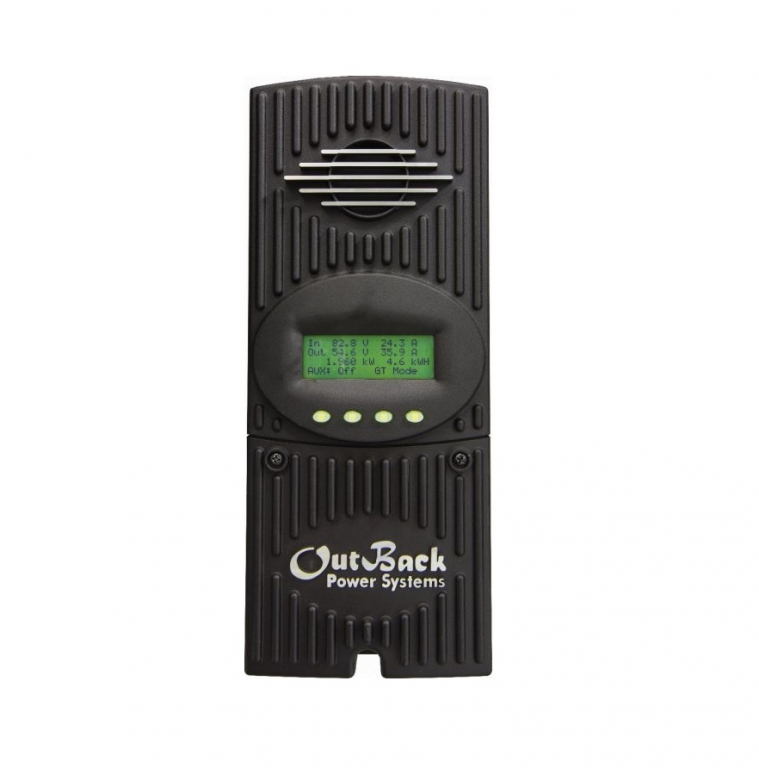

OutBack Power FlexMax 60A 150V MPPT Charge Controller

OutBack Power FlexMax 60A 150V MPPT Charge Controller

OutBack Power FlexMax 60A, 150VDC MPPT Charge Controller.

The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C).

FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system

Features

• FM60-150VDC charge controller 60 Amp output @ 40C
• Can be used with 12V, 24V, 48V or 60 Vdc battery, with a maximum of 150Vdc PV
• The 3-stage charging algorithm ensures 100% recharge of the battery bank
• Adjustable voltage setting allows for use on a wide range of battery types


Product Details

• Manufacturer: OutBack Power
• SKU: FM60-150Vdc
• Weight: 20 lb
• Battery Voltage: 12/24/36/48/60
• Dimensions: 13.75 x 5.75 x 4.5 in
