Generac Substring Optimizer

Generac Substring Optimizer

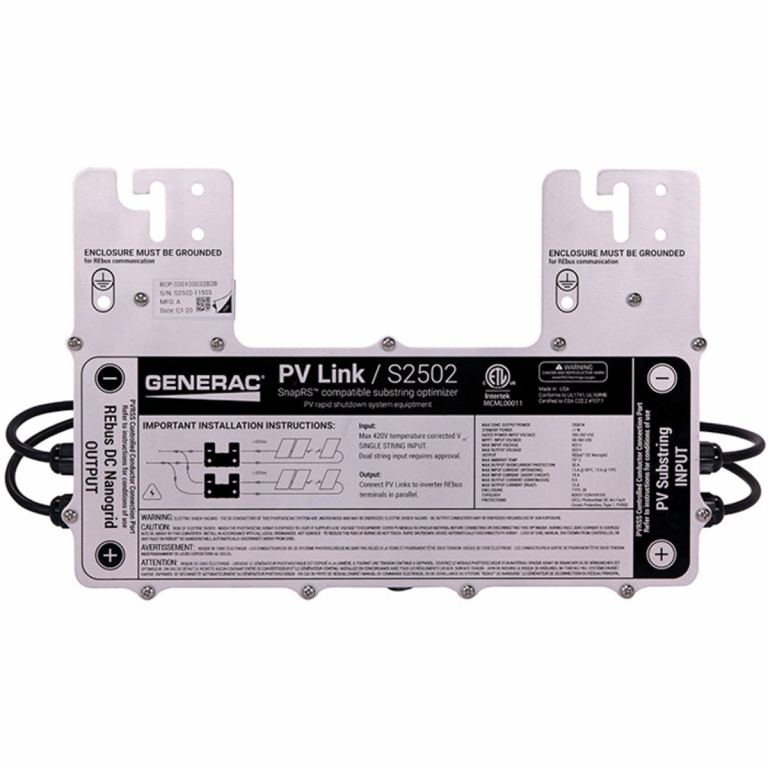

Generac PN: APKE00010 PV Link - 2500W MPPT Substring Optimizer designed to manage up to 2500 watts. Must be paired with PWRcell Inverter and a substring of between 200-420VOC. NEC 2014 Rapid Shutdown. Adding PV-SnapRS meets NEC 2017 Rapid Shutdown

The PV Link from Generac provides substring level optimization for all connected modules. Fit up to 9 modules on each PV Link when paired the Snap RS on every module (actual maximum will vary depending on module voltage). Up to 3 PV Links will fit on each PWRcell channel, with up to 6 per inverter.

Key Features:

• Fast and simple installation
• Lower failure risk than module-level optimizers
• Quick connection with MC4 connectors
• Exports up to 2500W
• Compatible with PWRcell Inverters
• Cost effective solution for high performance PV
• Ground fault protection

Product Details:

• Manufacturer Part Number: APKE00010
• Weight: 8.5 lb
• Dimensions: 20 x 10 x 3 in
• Case Qty: 4 Pcs
• Pallet Qty: 224 Pcs
