OutBack Power SkyBox RSD-1 ICS Plus PV Rapid Shutdown

OutBack Power SkyBox RSD-1 ICS Plus PV Rapid Shutdown Kit

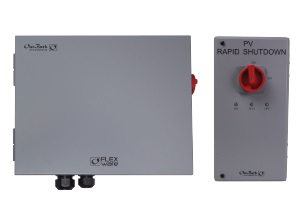

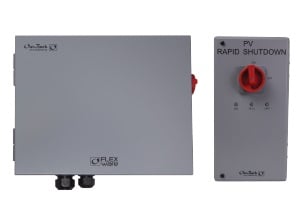

OutBack Power RSD-1 ICS Plus PV Rapid Shutdown package for SkyBox. Compatible with up to three strings of PV source circuits. Includes one FWPV3-FH600-S2D shutdown box, one RSI and one power supply.

OutBack provides a fully-compliant PV rapid shutdown equipment plus combiner solution with the SkyBox RSD-1.

The SkyBox Rapid Shutdown meets the following 2014 National Electric Code (NEC) requirements:


• NEC 690.12—Rapid shutdown (provides a means for first responders to safely de-energize controlled conductors)

• NEC 690.15—DC disconnect (opens all ungrounded circuit conductors from all sources of power)


The SkyBox RSD-1 is rated to 600VDC for integration in a wide range of systems and designed for ease of service and clean wire management. Components can be ordered for alternative system needs, including use with grid-direct PV inverters, and stacked SkyBox’s.

Product Highlights

• End-to-end solution listed to UL1741
• Type 3R enclosures rated for indoor or outdoor installation
• Flexible design—install the combiner box vertically or horizontally and mount to racking or under an array
• Interoperable with compatible third-party PV rapid shutdown devices (PVRSE with dry contact)

Product Details

• Manufacturer: OutBack Power
• SKU: SkyBox-RSD-1
• Weight: 12 lb
• Dimensions: 4.5 x 19.5 x 15.5 in
