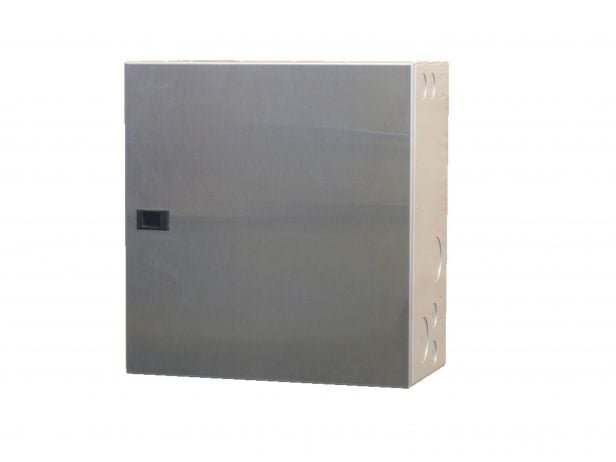

OutBack Power Prewired GS Load Center (GSLC175-PV-230)

OutBack Power Prewired GS Load Center (GSLC175-PV-230)

Outback Pre Wired GSLC with two 175A inverter disconnects, GFDI and PV disconnects for two charge controllers, FLEXnet DC w/ 3 shunts, 230VAC inverter bypass and dual AC inputs


OutBack Power’s GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.

Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-AC-120/240 can be used with AC-coupling applications in grid-tied systems.


The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.


Product Features

• Pre-wired or customized options for quick and easy installation
• Dual AC inputs and DC connections
• 120/240VAC and 230VAC designs
• UL 1741 end-to-end
• Greater dynamic stability
• Dual AC inputs
• Fully integrated from industry leading brand


Product Details

• Manufacturer: OutBack Power
• Accessory Type: Inverter Charger Load Center
• Custom Status: Non-Stock Item
• SKU: GSLC175-PV-230
• Weight: 26 lb
• Dimensions: 17 x 16 x 8.5 in
