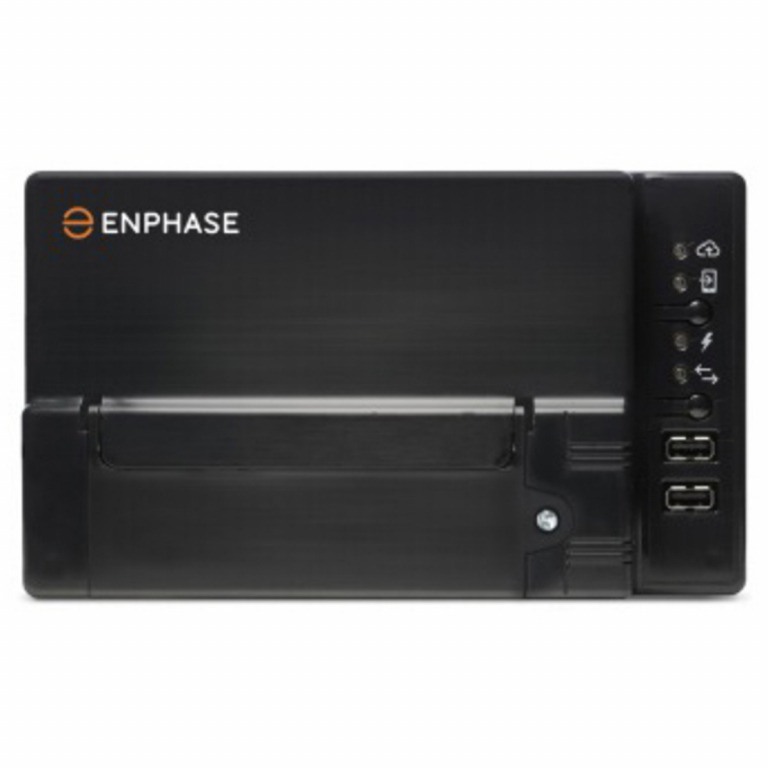

Enphase Envoy-S Metered Communications Gateway

Enphase Envoy-S Metered Communications Gateway

Enphase Envoy-S Metered, Communications Gateway with integrated revenue grade PV production metering and optional consumption monitoring. For MS series inverter systems. Not compatible with IQ series.

Monitors and controls up to 600 microinverters, and includes lifetime access to Enphase Enlighten web-based analysis software. Revenue-Grade PV production monitoring, per ANSI C12.20, +/- 0.5% accuracy. Option for whole-house consumption monitoring, +/-2.5% accuracy (requires two EN-CT200-SPLIT transformers). Connects to internet using either Wi-Fi, Cat5 Ethernet, or cellular modem (EN-CELLMODEM-01). May be connected to a router through house AC wiring using Powerline Communication Bridge (EN-EPLC-01). Enclosure is IP30 indoor rated. Powered by 120VAC, MUST be mounted inside a non-metallic NEMA type 3R (or better) enclosure (not supplied) and hardwired to a 15A (max) breaker. 5-Year Warranty.

SMART

Enables web-based monitoring and control

Bidirectional communications for remote upgrade

SIMPLE

Easy system configuration using Installer Toolkit mobile app

Flexible networking with Wi-Fi, Ethernet, or cellular

RELIABLE

Designed for installation indoors or out

Five-year warranty

Product Details

• Manufacturer Part Number: ENV-S-AM1-120
• Shipping Weight: 2.5222 lb
• Shipping Dimensions: 11 x 7 x 5 in
• Case Qty: 9
