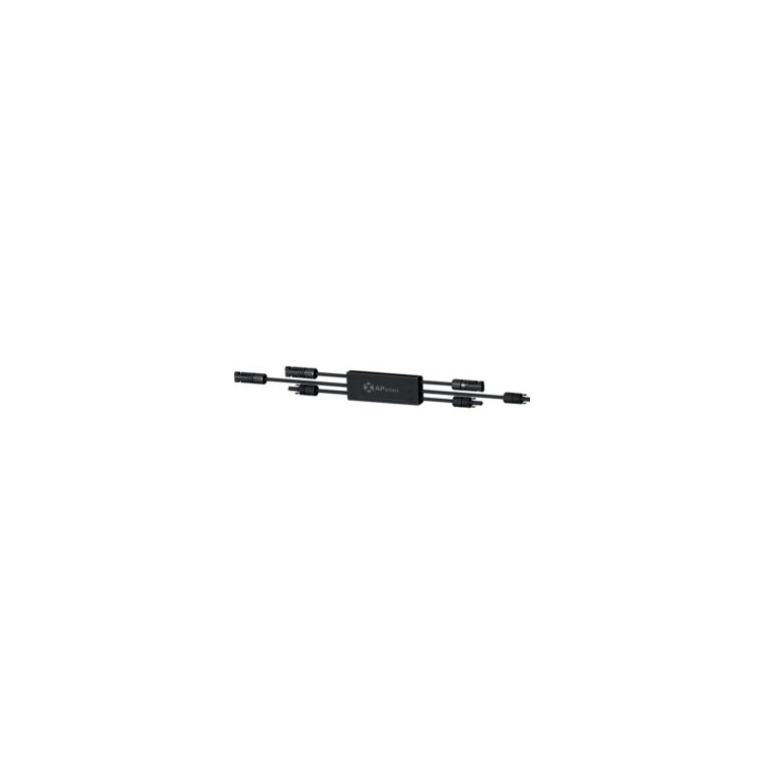

APSystems 1500V/ 20A Rapid Shut Down Duo

APSystems 1500V/ 20A Rapid Shut Down Duo

RSD-D meets SunSpec requirements, maintaining normal function by continually receiving a heartbeat signal fromthe APsmart Transmitter.The RSD-D executes rapid system shutdown when the Transmitter signal is absent. Users can manually execute rapid shutdownusingTransmitter breaker switch.

Product Details:

• Manufacturer Part Number: 446101
• Range of Output Operating Voltage: 16-130V
• Maximum Cont. Output Current: 20A
• Maximum System Voltage: 1000V/1500V
• Product Dimensions : 5.5 x 2 x 0.8
• Box Dimensions: 13.9 x 11.81 x 11.22in
• Weight: 20.73 lbs
• Box Qty: 12
• Pallet Qty: 720 Units
