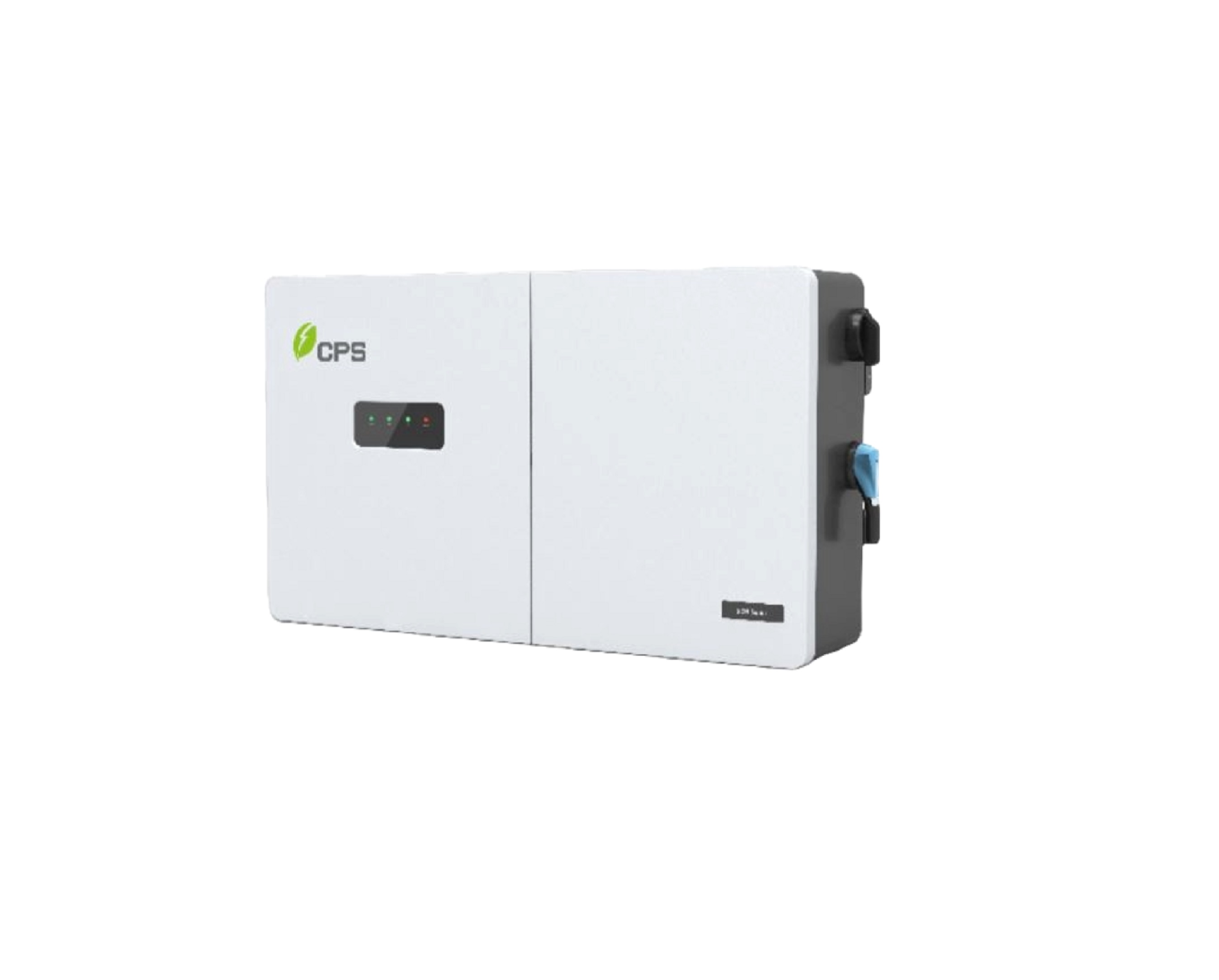

Chint Power 100kW 480V Centralized WB 3 Phase String Inverter
The CPS 100 kW-480 V three-phase string inverters are designed for ground-mount applications with 480 Vac service voltage. The units are high performance, advanced, and reliable inverters designed specifically for the North American environment and grid. High efficiencies, wide operating voltages, broad temperature ranges, and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 100 kW products ship with the Distributed or Centralized wire box, each fully integrated and separable with AC and DC disconnect switches. Enhanced DC wire boxes are available to allow DC disconnection under short circuit conditions. The CPS FlexOM solution enables communication, controls and remote product upgrades.
Key Features:
- Separable wire box design for fast service
- Integrated AC and DC disconnect switches
- CPS FlexOM Gateway enables remote firmware upgrades
- Copper- and aluminum-compatible AC connections
- 1 MPPT with 20 fused inputs for maximum flexibility
Product Details:
- Manufacturer Part Number: SCH100KTL-DO/US-480-CWB
- Power Output: 100000 Watts
- Voltage: 480 Volt
- Inverter Weight: 121 lb
- Centralized Wirebox Weight: 33 lb
- Total Weight: 154 lb
- Dimensions: 39.37 × 24.25 × 9.84 in
