Chint Power 100kW 600V Centralized WB 3 Phase String Inverter
Quantity on Hand0 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

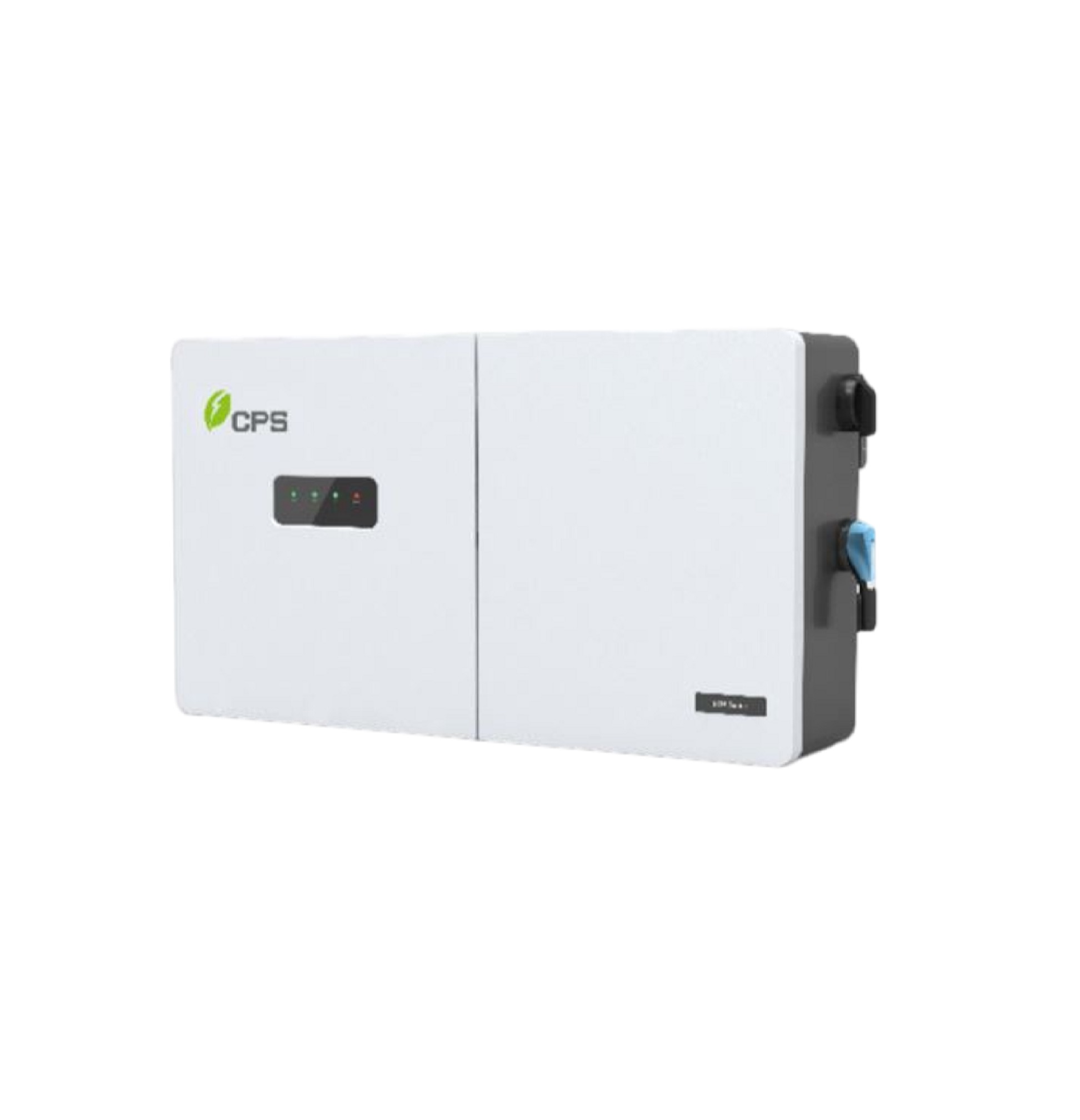

Chint Power 100kW 600V Centralized WB 3 Phase String Inverter
The 100 and 125 kW high power CPS three-phase string inverters are designed for ground mount and carport applications at 1500 Vdc. The units are high performance, advanced, and reliable inverters designed specifically for the North American environment and grid. High efficiency at 99.1% peak and 98.5% CEC, wide operating voltages, broad temperature ranges, and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 100/125 kW products ship with the Distributed or Centralized Wire Box, each fully integrated and separable with AC and DC disconnect switches. Enhanced DC Wire Boxes are available to allow DC disconnection under short circuit conditions. The CPS FlexOM Gateway enables communication, controls, and remote product upgrades.
Key Features:
- Separable wire box design for fast service
- Integrated AC and DC disconnect switches
- CPS FlexOM Gateway enables remote firmware upgrades
- Copper- and aluminum-compatible AC connections
- Advanced Smart-Grid features
Product Details:
- Manufacturer Part Number: SCH100KTL-DO/US-600-SWB
- Power Output: 100000 Watts
- Voltage: 600 Volt
- Inverter Weight: 121 lb
- Centralized Wirebox Weight: 33 lb
- Total Weight: 154 lb
- Dimensions: 45.28 × 24.25 × 9.84 in
