Chint Power 25kW 208V Three Phase String Inverter
Quantity on Hand0 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

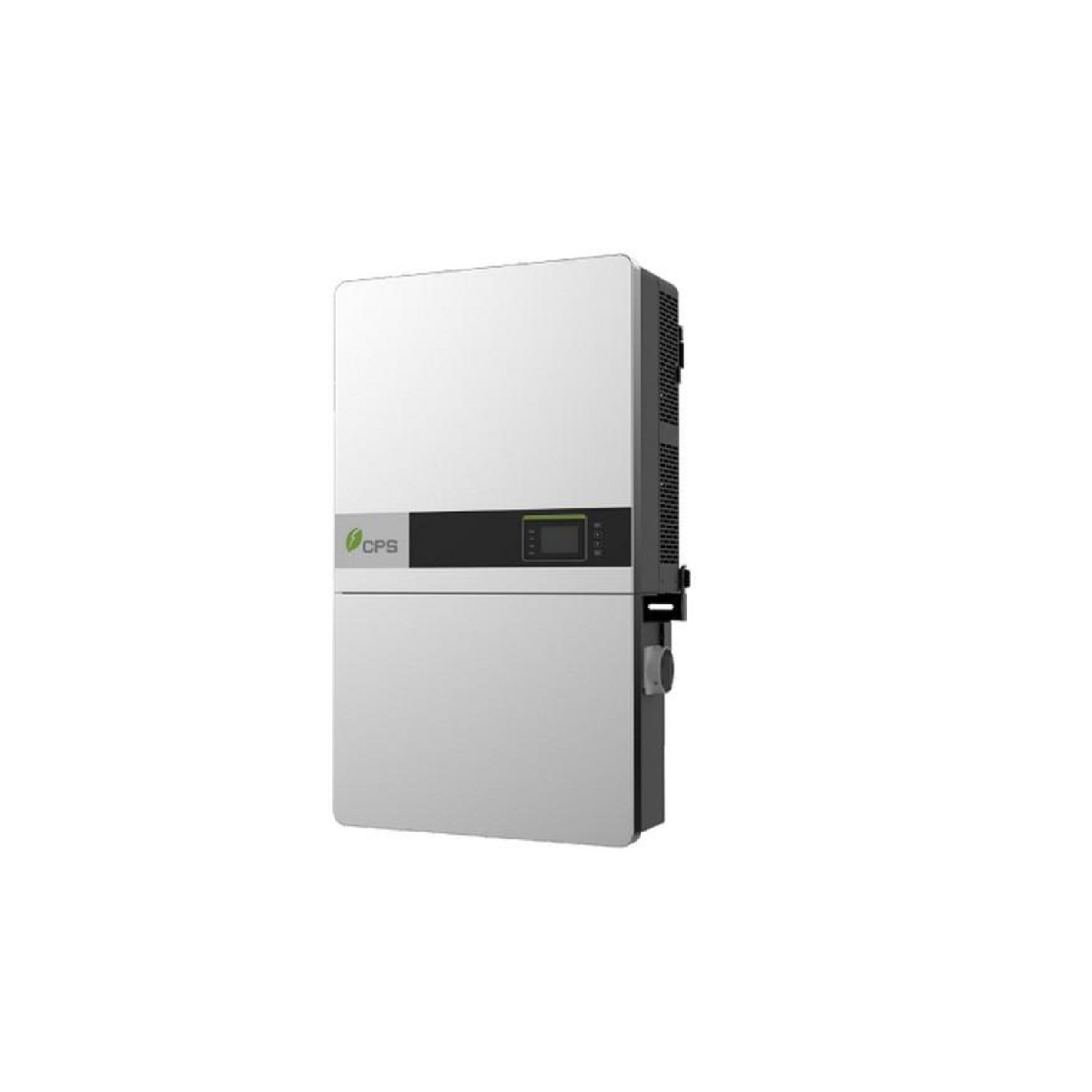

Chint Power 25kW 208V Three Phase String Inverter
25kW 3Phase String 208Vac (APS RSD Wirebox)
The CPS three-phase string inverters are designed for rooftop and carport applications. The units are high performance, advanced, and reliable inverters designed specifically for the North American environment and grid.
Key Features:
- 15-90° mounting orientation for low-profile roof installs
- Optional FlexOM Gateway enables remote firmware upgrades
- Integrated AC and DC disconnect switches
- Generous 1.8 DC/AC inverter load ratio
- 3 MPPTs with 2 inputs each for maximum flexibility
- Copper- and Aluminum-compatible AC connections
- Separable wire-box design for fast service
- Generous 1.8 DC/AC inverter load ratio
Product Details:
- Manufacturer Part Number: SCA25KTL-DO/US-208
- Power Output: 25000 Watts
- Voltage: 208 Volt
- Current: 69.5 A
- AC surge protection: Type II MOV
- Weight: 123.5 lb
- Dimensions: 39.4 × 23.6 × 10.2 in
