Chint Power 275kW 800Vac 24 or 36 Inputs 3 Phase String Inverter
Quantity on Hand0 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

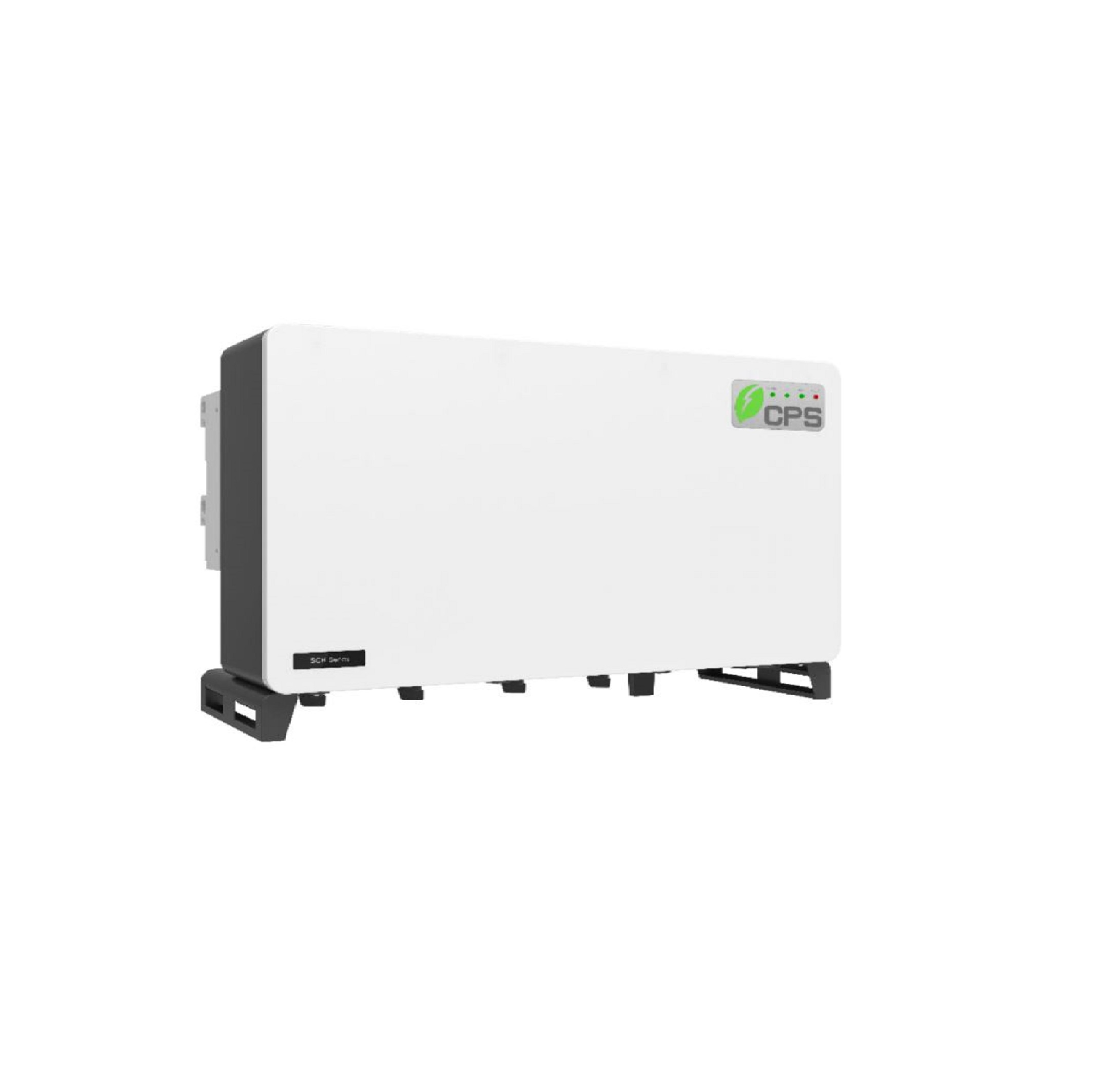

Chint Power 275kW 800Vac 24 or 36 Inputs 3 Phase String Inverter
The 250/275 kW high power CPS three-phase string inverters are designed for ground-mount applications. The units are high performance, advanced, and reliable inverters designed specifically for the North American environment and grid. High efficiencies, wide operating voltages, broad temperature ranges, and NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The SCH275KTL inverters include a selectable active power of either 250 kW or 275 kW (factory default) with 12 MPPTs and are available with either 36 fused PV string inputs or 24 unfused PV string inputs. The CPS FlexOM solution enables communication, controls and remote product upgrades.
Key Features:
- Anti-PID function
- Integrated DC disconnect switches
- CPS FlexOM Gateway enables remote firmware upgrades
- Protection functions for enhanced reliability and safety
- Advanced Smart-Grid features
Product Details:
- Manufacturer Part Number: SCH275KTL-DO/US-800-[24 or 36]
- Power Output: 275000 Watts
- Voltage: 800 Volt
- inverter Weight: 262 lbs
- Dimensions: 27.2 × 41.3 × 15.7 in
