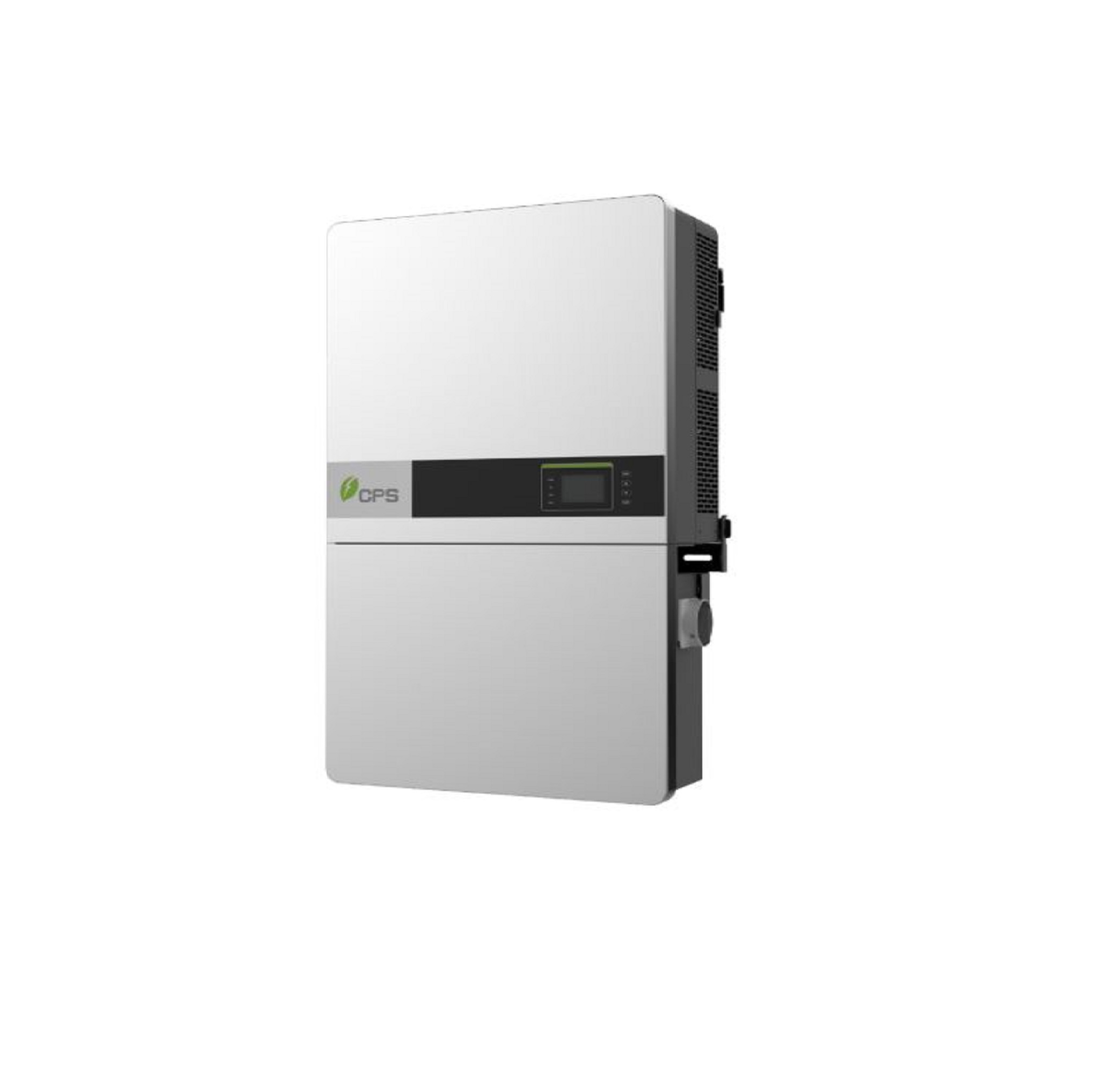

Chint Power 36kW 480V with RSD WB (APS) 3 Phase String Inverter
The CPS 36 kW three-phase string inverter is designed for rooftop and carport applications. The units are high performance, advanced, and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.18% peak and 97.4% CEC, wide operating voltages, broad temperature ranges, and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications.
Key Features:
- Separable wire-box design for fast service
- Integrated AC and DC disconnect switches
- Optional FlexOM Gateway enables remote firmware upgrades
- PVRSS certified for rapid shutdown
- 3 MPPTs with 5 inputs each for maximum flexibility
Product Details:
- Manufacturer Part Number: SCA36KTL-DO/US-480-APS
- Power Output: 36000 Watts
- Voltage: 480 Volt
- AC output current @ 480 Vac: 43.5 Amps
- Inverter Weight: 123.5 lb
- Wirebox Weight: 33 lb
- Total Weight: 156.5 lb
- Dimensions: 39.4 × 23.6 × 10.24 in
