Chint Power 50kW 480V with RSD WB (APS) 3 Phase String Inverter
Quantity on Hand0 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

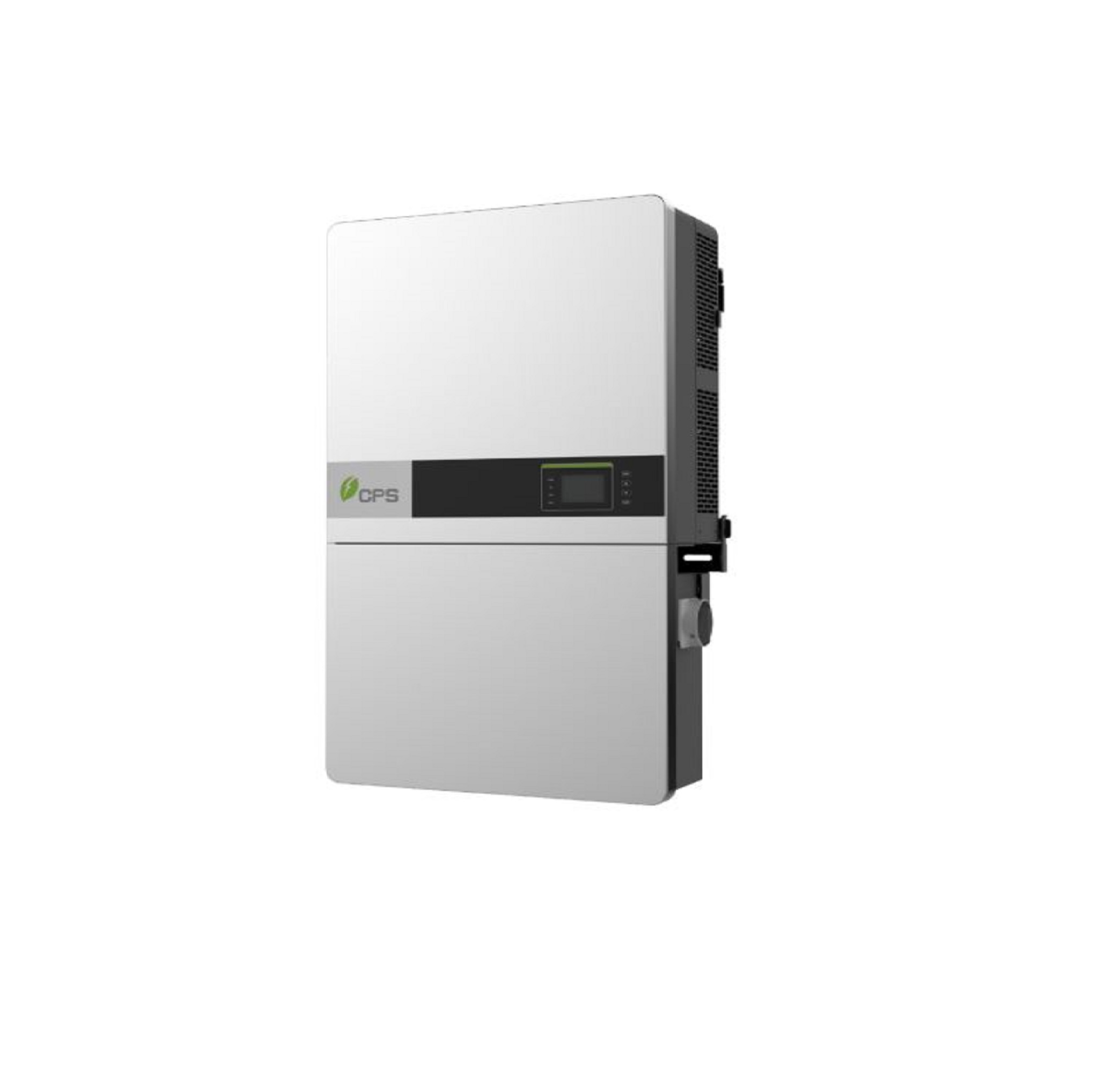

Chint Power 50kW 480V with RSD WB (APS) 3 Phase String Inverter
The CPS 50/60 kW three-phase string inverters are designed for ground mount, rooftop and carport applications. The units are high performance, advanced, and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.8% peak and 98.5% CEC, wide operating voltages, broad temperature ranges, and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications.
Key Features:
- Separable wire-box design for fast service
- Integrated AC and DC disconnect switches
- Optional FlexOM Gateway enables remote firmware upgrades
- PVRSS certified for rapid shutdown
- 3 MPPTs with 5 inputs each for maximum flexibility
Product Details:
- Manufacturer Part Number: SCA50KTL-DO/US-480-APS
- Power Output: 50 000 Watts
- Voltage: 480 Volt
- Inverter Weight: 123.5 lb
- Wirebox Weight: 33 lb
- Total Weight: 156.35 lb
- Dimensions: 39.4 × 23.6 × 10.24 in
