Asking Price Per Unit:
$151.42
NEW
Eaton BRP12B100 100A/120/240VAC Main Circuit Breaker Load Center
Quantity on Hand2 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

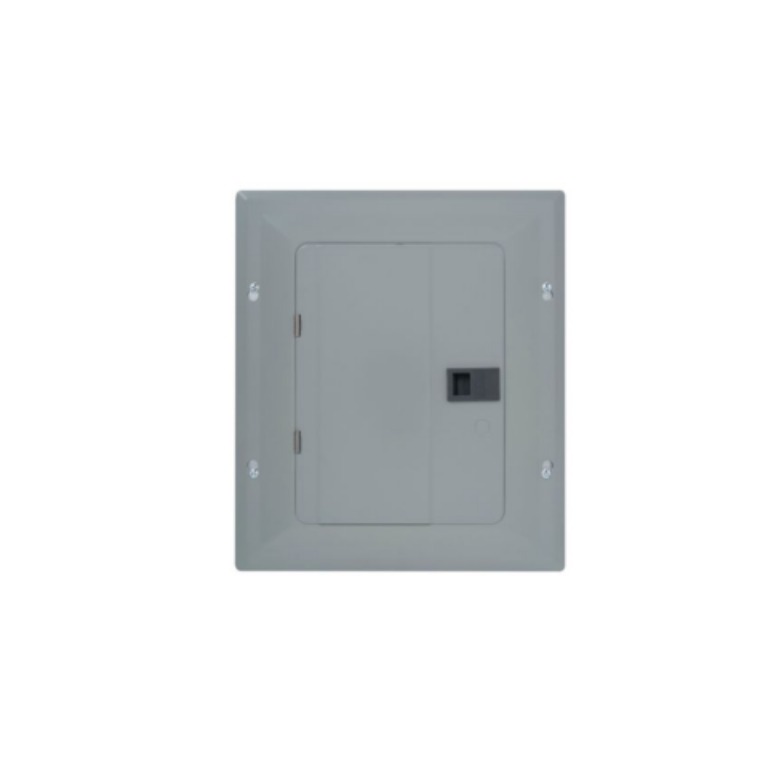

Eaton BRP12B100 100A/120/240VAC Main Circuit Breaker Load Center
Eaton BR main breaker loadcenter, Plug-on neutral main circuit breaker loadcenter, 100 A, X1, Aluminum, Cover included, NEMA 1, Metallic, 10kAIC, BR2100, 24 circuits, Single pole, 12 spaces, Two hots, a neutral, and a ground, Single-phase
Product Details:
- Mfr Part number: BRP12B100
- AMPERAGE RATING :100 A
- VOLTAGE RATING: 120/240 V
- INTERRUPT RATING: 10 kAIC
- NUMBER OF CIRCUITS: 24
- NUMBER OF SPACES : 12
- PHASE: Single-phase
- BOX SIZE : X1
- Weight: 18.5 lbs
- Dimensions: 18.75 x 14.31 x 3.88 in
