EV ChargePlus 40A CityCharge Mini2 - Wall Mount

EV ChargePlus 40A CityCharge Mini2 - Wall Mount

Part NoEN-EL-AC-2P-40-M2-13F
MOQ1 Unit
Shipped & sold bySunhub Managed
Shipping TypeDDP - Delivered Duty Paid (Place)
LocationAtlantic City, NJ
ConditionNew
Asking Price Per Unit:
Quote on request
Quantity on Hand0 Units
View Negotiable Terms
Product Information

Ev Charge Plus Logo

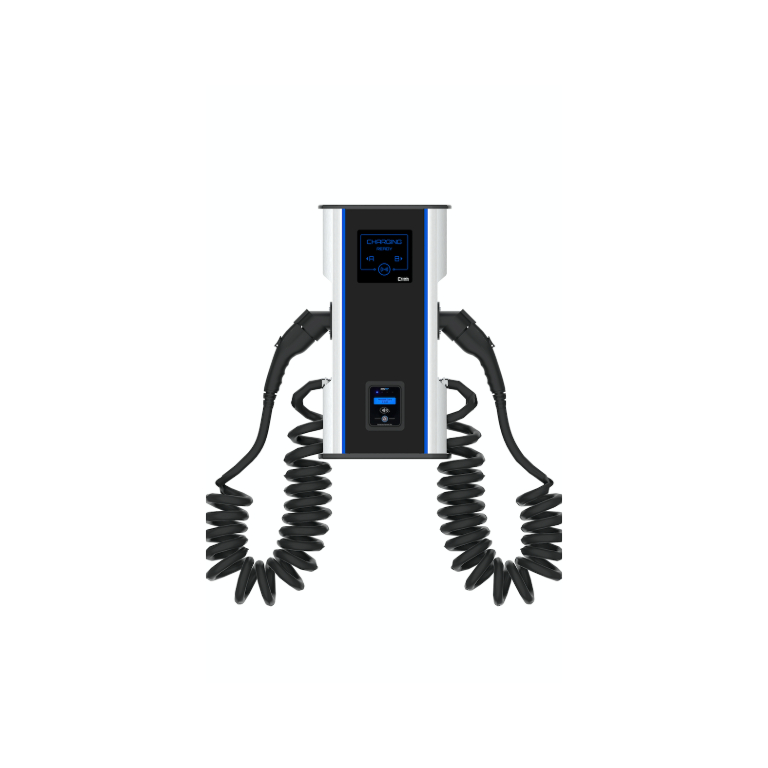

EV ChargePlus 40A CityCharge Mini2 - Wall Mount

**Lead time: 3 weeks**

The EV ChargePlus CityCharge Mini2 is a high-performance Mode 3 charger designed for commercial, retail, hospitality, public, and fleet applications. The charger is manufactured with top-tier materials and components from industry-leading manufacturers, including Siemens, Mennekes, Teltonika, and Phoenix Contact. Its robust housing, crafted from extruded CNC-machined and anodized aluminum, ensures long-term durability and ground-mount versatility. Delivering up to 2 x 40 A via Type 1 SAE J1772 spiral cables, it adds approximately 35 miles of range per hour. A vibrant animated LED screen and sidebars remain visible in sunlight and at night. Advanced features include high-quality electronics, a smart energy meter, power balancing, dynamic load management, a residual current device, and integrated climate control, all of which ensure reliable EV charging operation in any weather condition. The charger also supports RFID authentication and offers an optional credit card payment solution. It operates on the OCPP 1.6 JSON protocol and is also available with Elios.Cloud software for enhanced monitoring. The CityCharge V2 holds UL, ENERGY STAR, and EPRI certifications, and it comes with a 36-month manufacturer's warranty.

Product Features:

  • Commercial-grade dual EV charging station - wall mount
  • Anodized aluminum enclosure – will never corrode or fade
  • Coiled cables don’t require a cable management system (CMS)
  • Optional touchless credit card reader - Payter
  • UL, Energy Star, and EPRI certifications
  • 36-month manufacturer’s warranty – parts only
  • White label ready - CityCharge custom design wrapping

Product Details:

  • Manufacturer Prt No: EN-EL-AC-2P-40-M2-13F
  • Max current per port: 2 x 40A
  • Spiral cable length - 13 Ft
  • Communication and authentication – OCPP 1.6J, RFID
  • Network connectivity – Ethernet (LAN), 4G/SIM, WIFI
  • Dynamic load management (DLM)
  • Residual current device (RCD)
  • Product Weight: 47 Lb
  • Product dimensions: 13.5 x 5.8 x 25.5
  • Shipping weight: 85 Lb
  • Shipping dimensions: 24 x 14 x 31 In
