Generac 200A 120/240V PWRCell SE Rated Automatic Transfer Switch
Quantity on Hand0 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

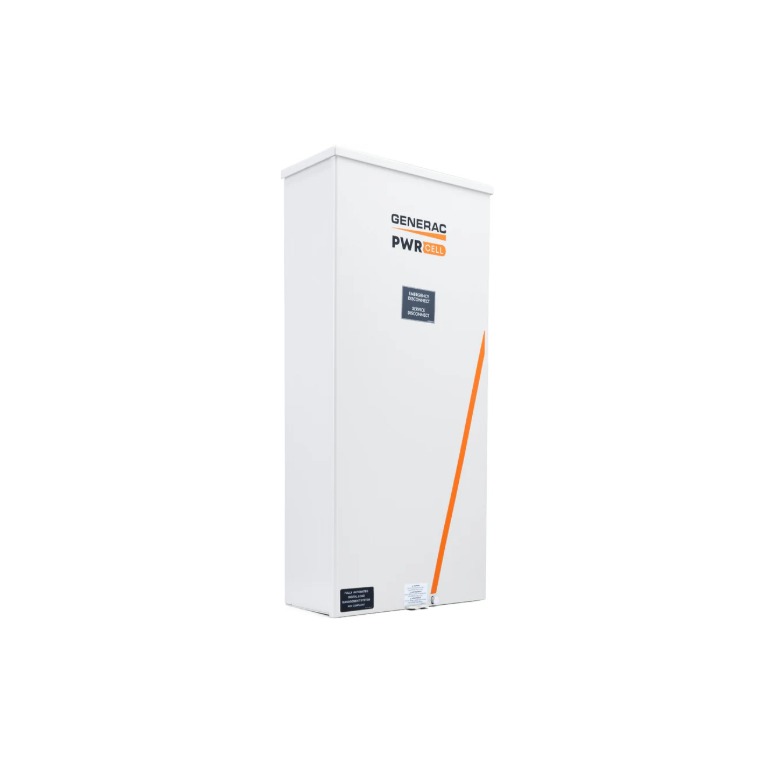

Generac 200A 120/240V PWRCell SE Rated Automatic Transfer Switch
An integrated solar + storage system with load management for whole home coverage is made easy with the PWRcell™ Automatic Transfer Switch (ATS). Power the entire home and manage up to four individual HVAC (24 Vac controlled) loads with the PWRcell ATS. This built-in capability requires no additional hardware. When used in tandem with Generac Smart Management Modules (SMM) up to eight additional circuits can be controlled by the PWRcell Inverter. Make the most of your Generac solar + storage system with this comprehensive load management solution.
Key Features:
- Unlock whole home backup power capability for PWRcell solar + storage systems
- Automatically transfers power between utility and backup system
- Aluminum type 3R enclosure with durable finish for indoor or outdoor installation
- Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service and reliability
- Manage up to four HVAC systems, and an additional eight circuits with optional Smart Management Modules (SMMs)
Product Details:
- Manufacturer Part Number: CXSW200A3 SE
- Output Current: 200 Amps
- Voltage: 120/240 Volt
- Weight: 39 lb
- Dimensions: 26.75 x 10.5 x 6.3 in
