Hanwha QCells Battery Energy Storage System with Hybrid Inverter

Hanwha QCells Battery Energy Storage System with Hybrid Inverter

NOTE: Free returns within 30 days if the item isn’t as described. Weight and  Dimensions are separate for each product so please check for shipping.

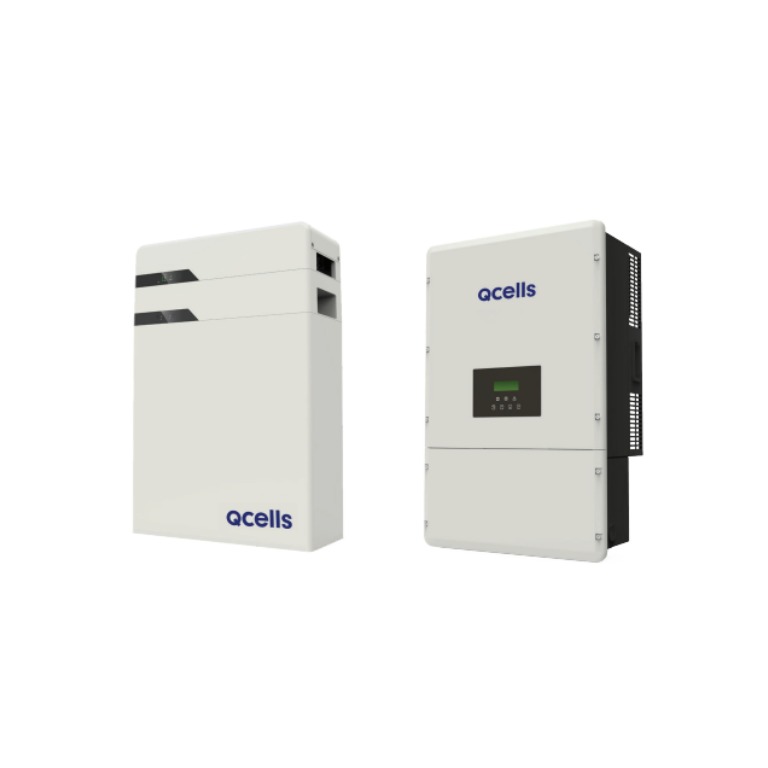

The Qcells Q.HOME+ ESS HYB-G1 is a modular hybrid solar inverter system designed for residential applications. It integrates seamlessly with one or more lithium-ion batteries to provide backup power, load shifting, and energy independence. This system includes an 8.6 kW hybrid inverter paired with one 6.3 kWh lithium-ion battery module, scalable up to ~18.9 kWh.

BESS Includes:

• 1 x 8.6kW Solar Hybrid Inverter
• 2 x 6.3kWh Batteries

Key Features:

• Modular and scalable: expand battery capacity up to 18.9 kWh
• Backup capability: delivers up to ~7.5 kW AC during outages.
• High efficiency: up to 95.7% conversion efficiency
• Depth of Discharge (DoD): 90%
• Remote monitoring and diagnostics via app/web portal

Product Details:

• Mfr Part Number:  Q.HOME+ ESS HYB-G1
• Inverter Power Output: 8600 Watts
• Battery Power Output: 6300 Watts (Expandable)
• Voltage 120/240
• Current: 32 A
• Inverter Weight:  130 lb
• Battery Weight: 148.8 lb
• Inverter Dimension: 36 × 22× 10.9 in
• Battery Dimension: 18.3 x 7.6 x 23.1 in
