Asking Price Per Unit:
$987.85
NEW
Hoymiles 3.8kW 240V Split-phase AC-coupled Inverter
Quantity on Hand30 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

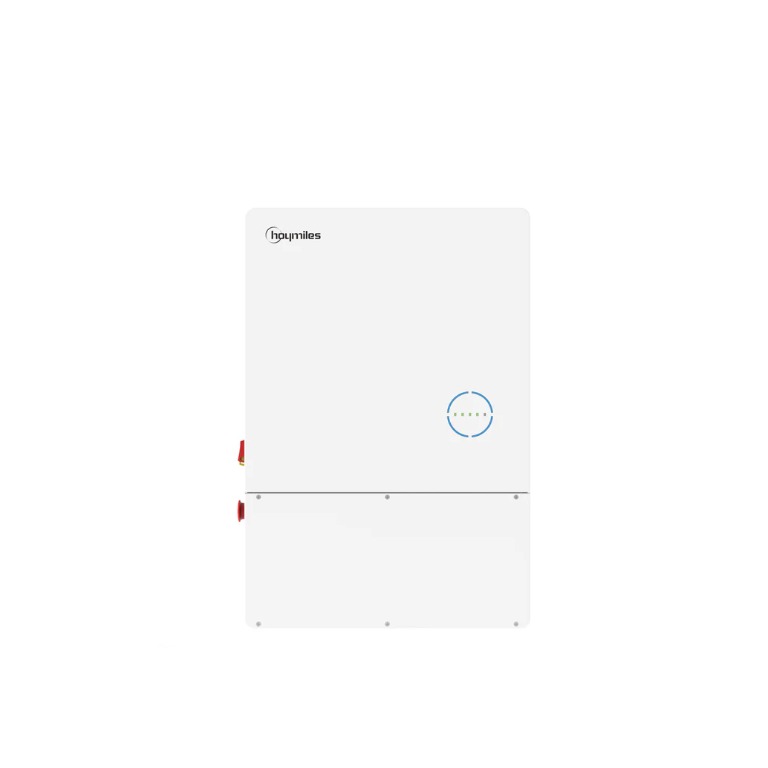

Hoymiles 3.8kW 240V Split-phase AC-coupled Inverter
Note: Discounts are available for bulk orders of (inverter+ batteries)
The HAS-LV-USG1 Series is for retrofit application, including power classes ranging from 3.8 kW to 11.5 kW. It can be installed with existing PV inverters, forming an AC-coupled system. The intelligent EMS function supports self-consumption mode, economical mode, and backup mode for multi-scenario applications. Monitoring management through S-Miles Cloud allows users to remotely diagnose and track individual system's performance over time, maximizing the total battery utilization.
Key Features:
- Max. battery discharge to AC efficiency 95.0%
- Compatible with various 48 V low voltage batteries
- Ultralight for easy installation and space-saving
- Split-phase backup output w/o bulky autotransformer
- Smart energy storage system operating modes
- Remote monitoring through S-Miles Cloud
Product Details:
- Manufacturer Part Number: HAS-3.8LV-USG1
- Power Output: 3800 Watts
- Nominal Output Voltage: 240V
- Output Current: 16 Amp
- Weight: 61.7 lb
- Dimensions: 19.8 x 24.2 x 7.95 in
- Carton Qty: 1
- Pallet Qty: 6 Pcs
