Asking Price Per Watt:
Quote on request
Available On Request
HT-SAAE 550W 144 Cells Mono Solar Panel
| Quantity On Hand | |||
|---|---|---|---|
| Panels | Pallets | Container | MW |
| 0 | 0 | 0 | 0 |
Description
Specifications
Supporting Docs
Product Information

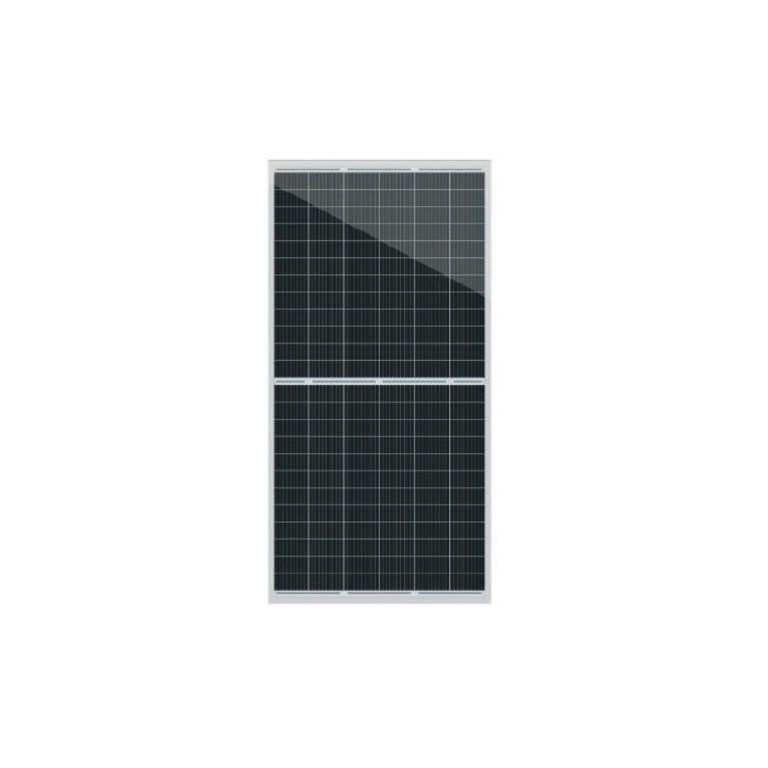

HT-SAAE 550W 144 Cells Mono Solar Panel
High Efficiency Low LID and Bifacial cell with Half-cut Technology Big Size: Cell 166×83mm Module Efficiency 21.4% No.of Cells 144 (6 × 24) Weight 23.5±0.5kg Dimensions 2094 × 1038 × 35mm Monocrystalline
Product Features:
- Half cut cell technology can reduce the internal power loss and improve component overall power. Excellent heat dissipation avoids hot spot production.
- 9BB The optimized number and width of main gate lines, Maximize the light receiving area of components and reduce component power consumption
- Designed for high voltage systems of up to 1500 VDC, increasing the string length of solar systems and saving on BOS costs
- Entire module certified to with stand extreme wind (2400 Pa) and snow loads (5400 Pa
Product Details:
- Part No.: HT72-18X 550W
- Wattage: 550W
- Cell Type: Monocrystalline 182× 91mm
- Weight: 62.83 lbs
- Dimension: 89.72 x 44.61 x 1.38 in
- Pallet Qty.: 22 Pcs
