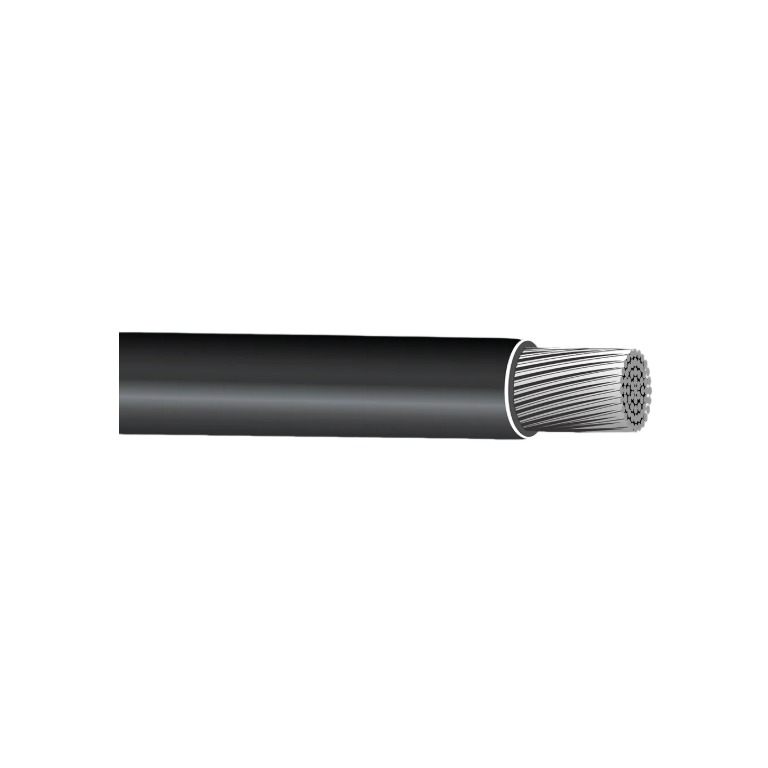

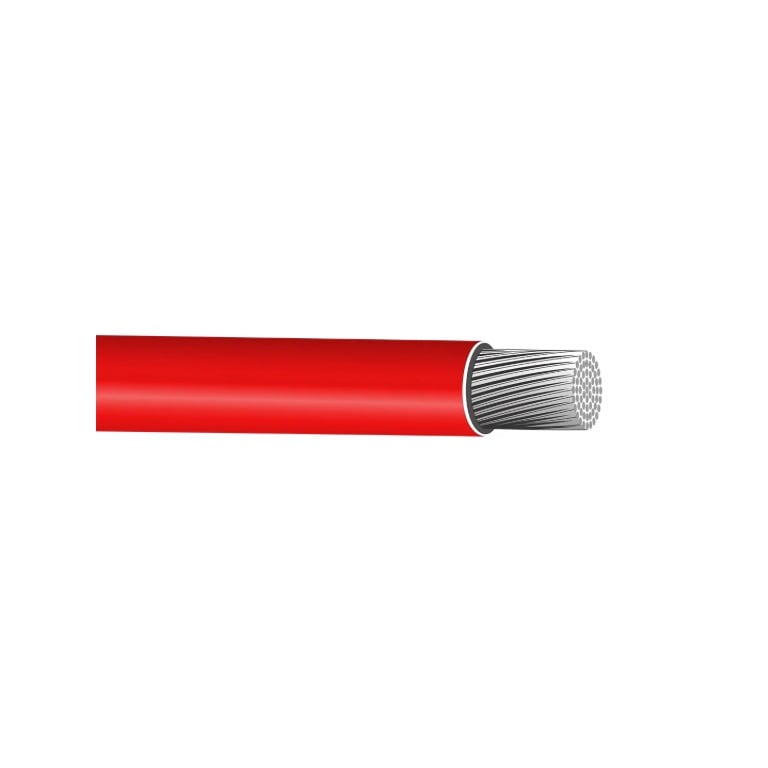

Nassau National Cable 2KV 2AWG Photovoltaic Cable

Nassau National Cable 2KV 2AWG Photovoltaic Cable

NOTE: “Quote can be provided upon request”

Compact stranded 8000 Series Aluminum conductor per ASTM B800, B801, B836, B901

Aluminum 2KV Photovoltaic Cable is primarily used for interconnection wiring of grounded and ungrounded photovoltaic power systems. When installed in accordance with NEC article 690.31(C)(2), PV source and PV output circuits, single-conductor cable of all sizes can be installed in outdoor cable trays. The PV cable is for applications up to 2000 volts and temperatures from -40°C to +90°C wet or dry.

Options:

• 600V UL PV Wire, CSA RPV90 available upon request
  • Paralleled conductors on one reel and circuit cuts available by request

Product Details:

• Mfr. Part Number:  2-01ALPV-2KVXLP
• Conductor Size: 2AWG
• No. of Strands: 7
• Insulation Thickness: 0.085
• Overall Diameter: 0.44 Inches
• DC Resistance at 20°C: 0.4160 Ω/kft
• Ampacity at 90°C: 100 amps
