Outback Power Radian GS Load Centers

Outback Power Radian GS Load Centers

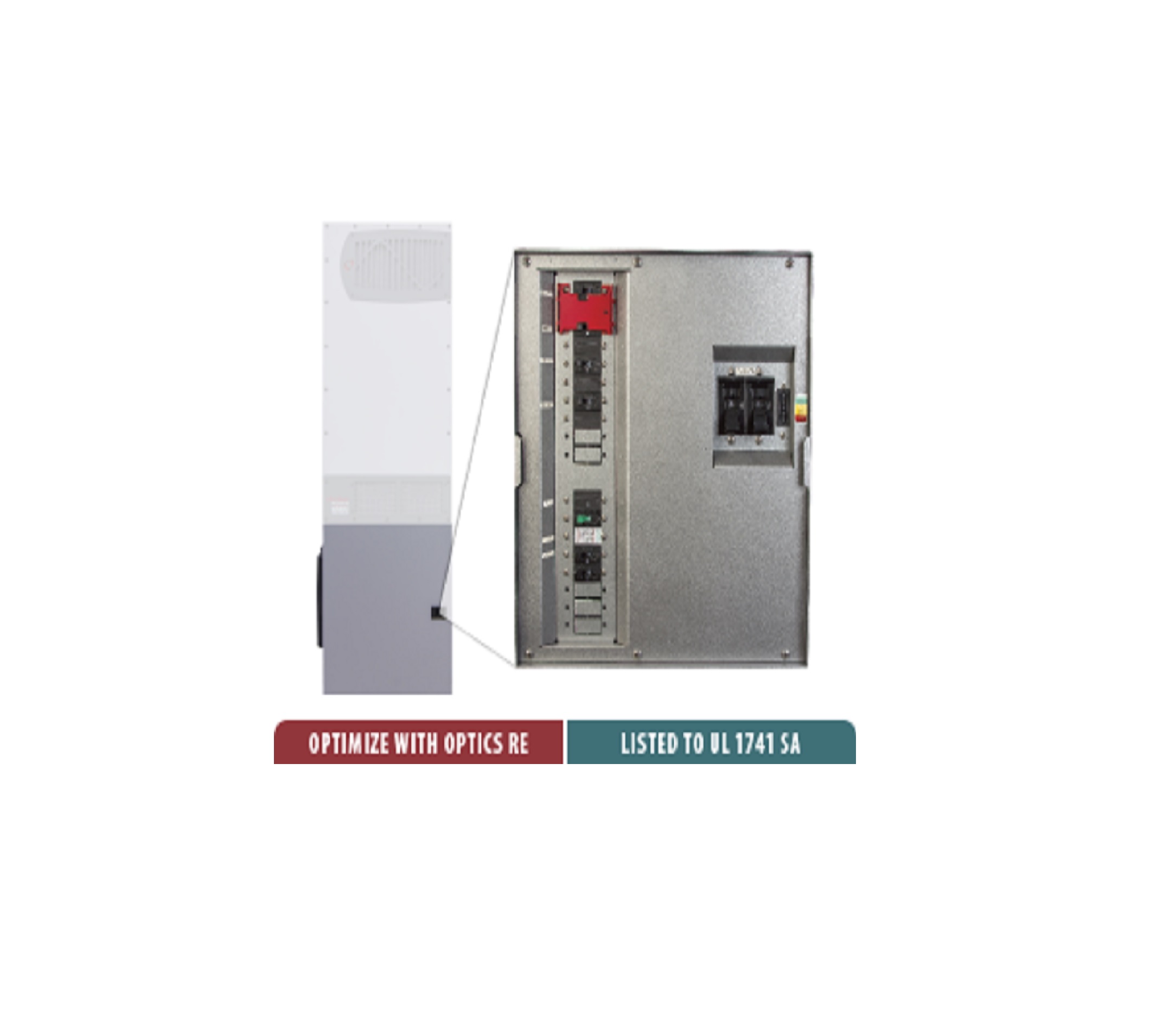

OutBack Power's Radian™ GS Load Centers are integrated AC/DC connection enclosures designed for Radian Series inverter/chargers. They provide DC overcurrent protection, disconnects, dual AC inputs, grid-tie inverter connections, and maintenance bypass options, simplifying system installation and energy storage integration.

NOTICE: The new 300V GS load centers accommodate FLEXmax 100 charge controllers. Due to the different voltage ratings, OutBack Power does not recommend mixing the FM100-300VDC with the FM60 or FM80-150VDC controllers on the same battery bank. Be sure to review installation instructions when installing OutBack Power equipment.

Key Features:

• Pre-wired or customized options for quick and easy installation
• Dual AC inputs and DC connections
• 120/240VAC and 230VAC designs
• UL 1741 end-to-end
• Greater dynamic stability
• Dual AC inputs
• Fully integrated from industry leading brand

Product Details:

• Manufacturer Part Number: GSLC175-120/240
• Maximum Input Current: 500A
• Shipping Weight: 45 lb
• Dimensions: 23.25 x 20.5 x 13.5 in
• Warranty: Standard 5 year
