Phocos 8kW Any-Grid Hybrid Inverter Charger

Phocos 8kW Any-Grid Hybrid Inverter Charger

Part NoPSW-H-8KW-230/48V
MOQ1 Unit
Shipped & sold bySunhub Managed
Shipping TypeEXW - Ex Works (Place)
LocationTucson, AZ
ConditionNew
Asking Price Per Unit:
Quote on request
Quantity on Hand0 Units
View Negotiable Terms
Product Information

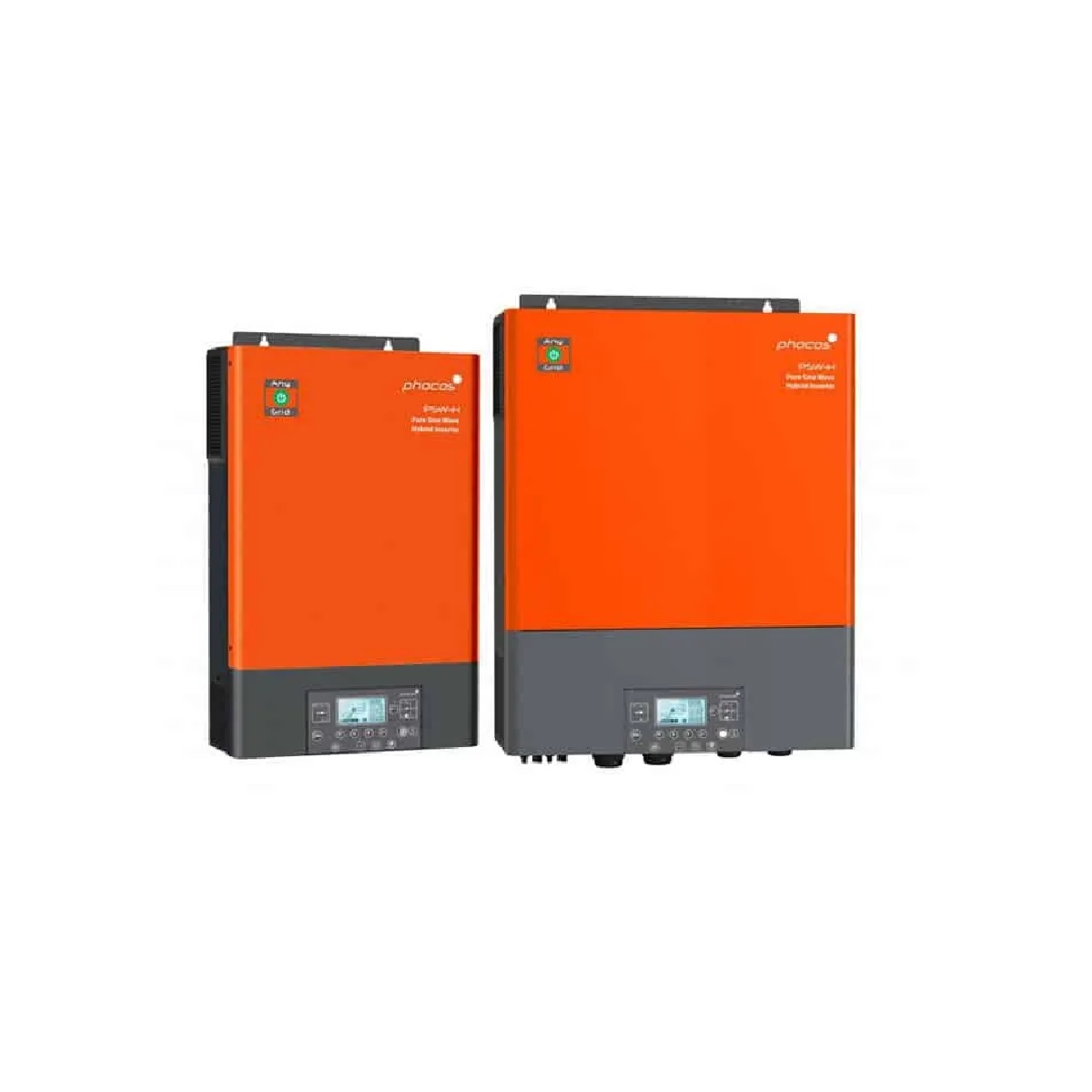

Phocos 8kW Any-Grid Hybrid Inverter Charger Detail Image 1

Phocos 8kW Any-Grid Hybrid Inverter Charger

The Phocos Any-GridTM PSW-H Inverter Charger Series (Pure Sine Wave Hybrid) represents Phocos’ most versatile line of inverters/ chargers. Flexibility and reliability are key characteristics of this product line, with a strong potential for cost saving opportunities in real world conditions. The PSW-H converts DC (Direct Current) energy into AC (Alternating Current), with multiple advantages beyond standard inverters. This product includes an integrated MPPT charge controller and can function as an AC to DC battery charger, which provides flexible energy access solutions in a broad range of applications.

Product Features

  • Flexible, advanced features with options to solve many common challenges in the field.
  • Integrated high-voltage MPPT charge controller. The high-voltage PV connection means in most scenarios the PV modules can simply be connected in series of one or two strings, avoiding costly combiner boxes and string fuses or diodes, thus reducing total system cost.
  • Integrated AC battery charger.
  • Charge controller functions even if inverter is turned off to keep batteries fully charged.
  • Functions without an expensive battery to reduce energy consumption from the grid with minimal investment.
  •  Detachable display / communication unit with 6 LEDs and an intuitive LCD screen.
  • High level of connectivity: BLE, USB-OTG (on-the-go), CAN Bus, RS-485, RS-232, relay for generator start.
  • Datalogger with up to 60 days of data storage.
  • Store or load parameters via USB for quick configuration.
  • Integrated buzzer for error indications.
  • Galvanic isolation of battery allows positive or negative grounding.
  • Up to 9 inverters can be connected in parallel, 3-phase or split-phase for up to 45 kW of synchronised AC power.
  • Washable filter reduces dust buildup in the inverter.
  • Grid feed-in option is code-protected to avoid accidental feed-in.

Product Details

  • Manufacturer Part Number: PSW-H-8KW-230/48V
  • Power Output: 8000 Watts
  • Voltage: 230/48V
  • Weight: 47.4 lbs
  • Dimensions: 23 x 17 x 5.8 in
