QuickBOLT Solar Mount 90/180 combo RibRider (32 Units Pack Price)

QuickBOLT Solar Mount 90/180 combo RibRider (32 Units Pack Price)

Part No17766
MOQ1 Unit
Shipped & sold bySunhub Managed
Shipping TypeEXW - Ex Works (Place)
LocationLivermore, CA
ConditionNew
Asking Price Per Unit:
$328.17
Quantity on Hand999 Units
View Negotiable Terms
Product Information

QuickBOLT Multi Roof Mount Kit 5/16

QuickBOLT Solar Mount 90/180 combo RibRider (32 Units Pack Price)

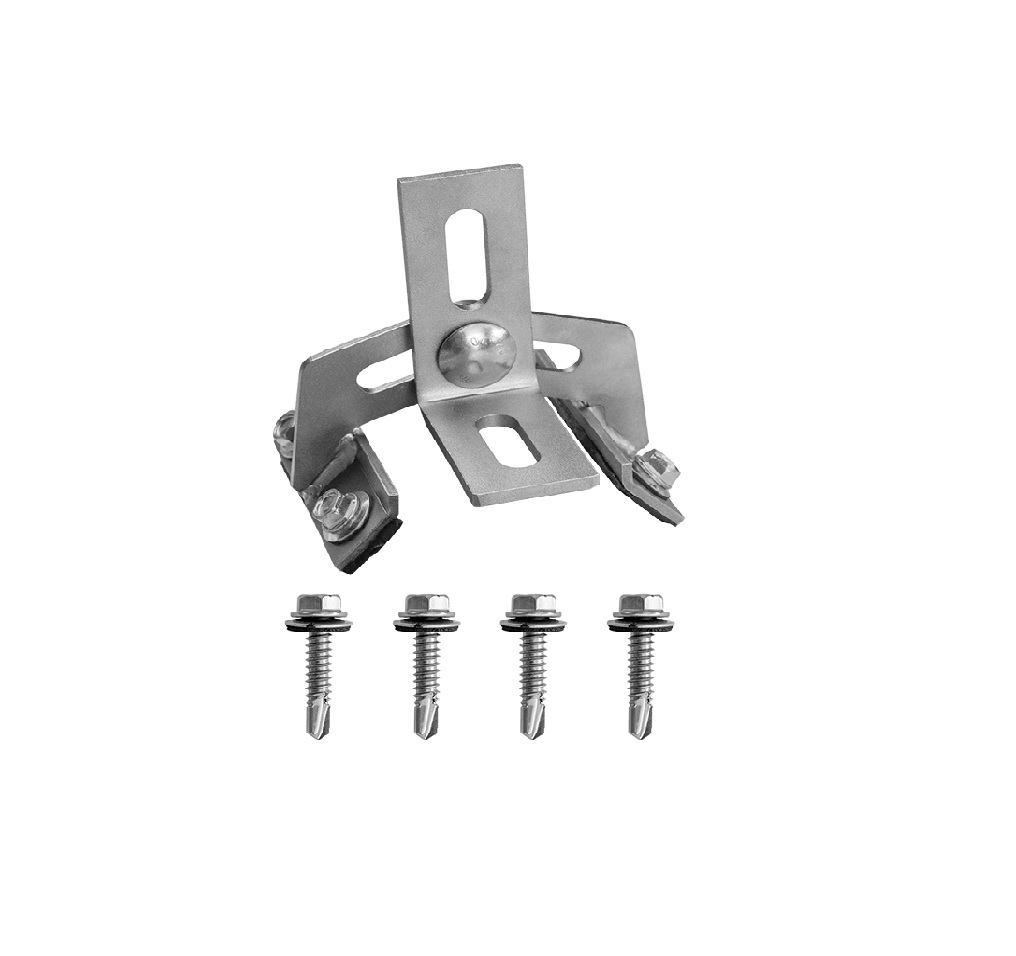

90/180 COMBO 75mm BUTYL BASE, QB RIBRIDER™ FOR EXPOSED FASTENER, TRAPEZOIDAL, AND RIBBED METAL ROOFS

The rib rider is an adjustable corrugated roof mount used on trapezoidal and curved corrugated roofs. Please make sure any of your installers know that when installing the screws, you need to install slow and with minimal torque. Screws Torque out at 15 ft lbs. Installers need to be light on the trigger when installing screws. You can use the term "Walk in the screws". The screw is held in place by 4 each 14 x 1-1/4” HWH SDS with Sealing 410 SS Screws and uses Butyl to seal the penetrations.

Product Details:

  • Part No: 17766
  • Pack Dimensions: 10 x 10 x 10 in
  • Shipping Weight: 19.5 lb
