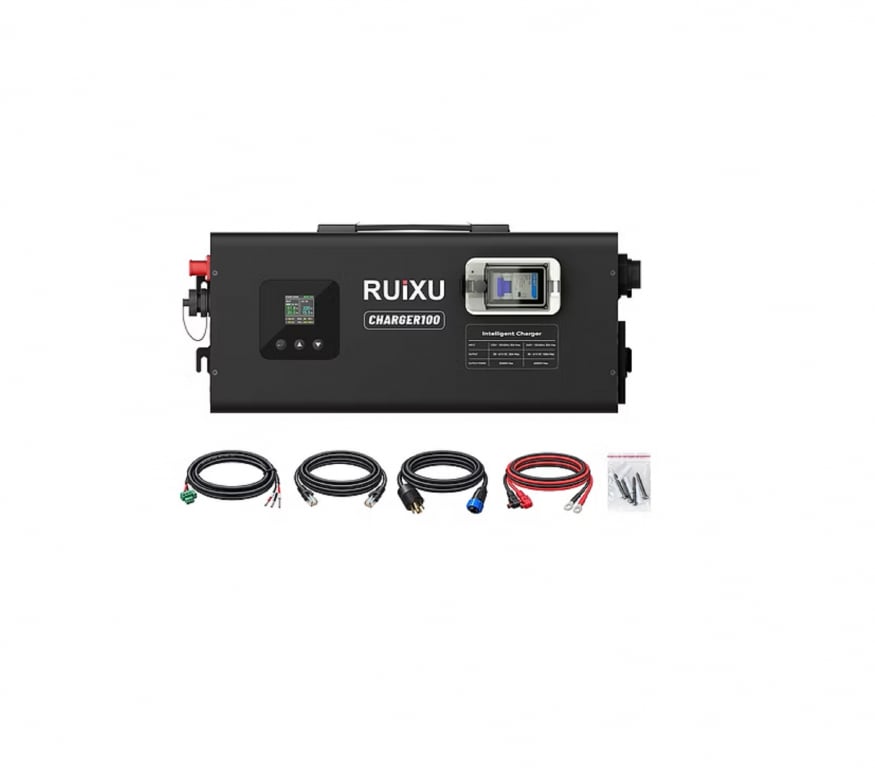

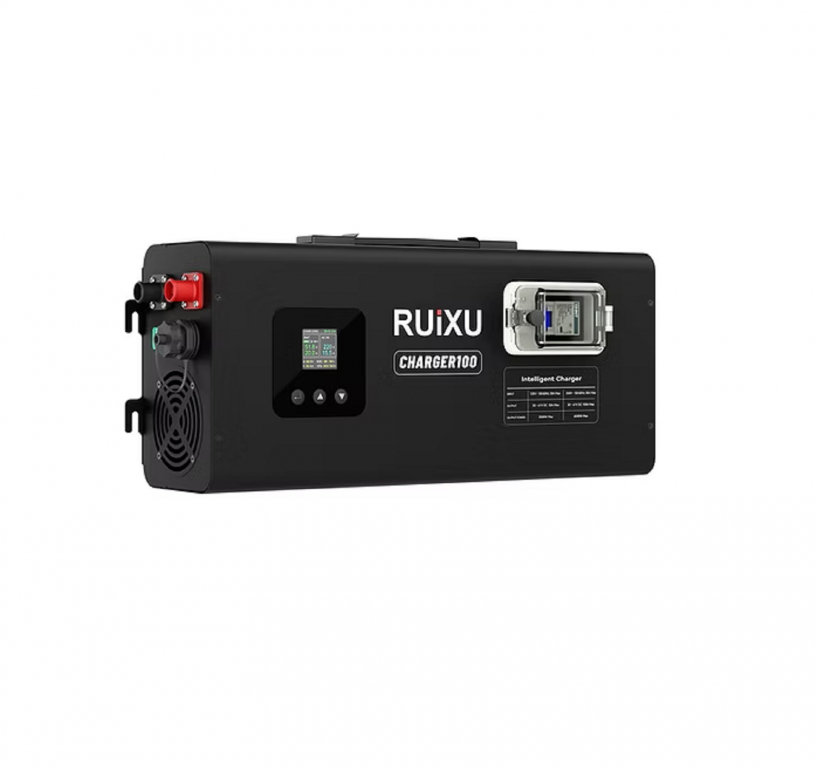

RUiXU Charger100 6kW 48V 100A Intelligent Lithium Battery Charger

RUiXU Charger100 6kW 48V 100A Intelligent Lithium Battery Charger

Designed for flexible 48V lithium charging

Key Features:

• Up to 6kW Output
• Automatic Generator Start/Stop
• Smart CAN BMS Communication
• LCD Monitoring

Product Details:

• Manufacturer Part Number: CHARGER100
• AC Input Voltage Range: 90-264 VAC
• AC Frequency: 50-60 Hz
• Max. Input Current: 26 A @ 240 VAC; 28 A @ 120 VAC
• Idle Consumption: -10 W
• Battery Voltage: 48 VDC nominal
• Charge Current (adjustable): 2-100 A @ 240 VAC; 2-45 A @ 120 VAC; 2-50 A @ 208 VAC
• Charge Voltage (adjustable): 40-60 VDC (default 56.5 VDC)
• Max. Output: 6000 W @ 240 VAC; 3000 W @ 120 VAC
• Max. Efficiency: 94% @ 240 VAC; 92% @ 120 VAC
• Generator Control Dry Contact: (NO, NC, C)

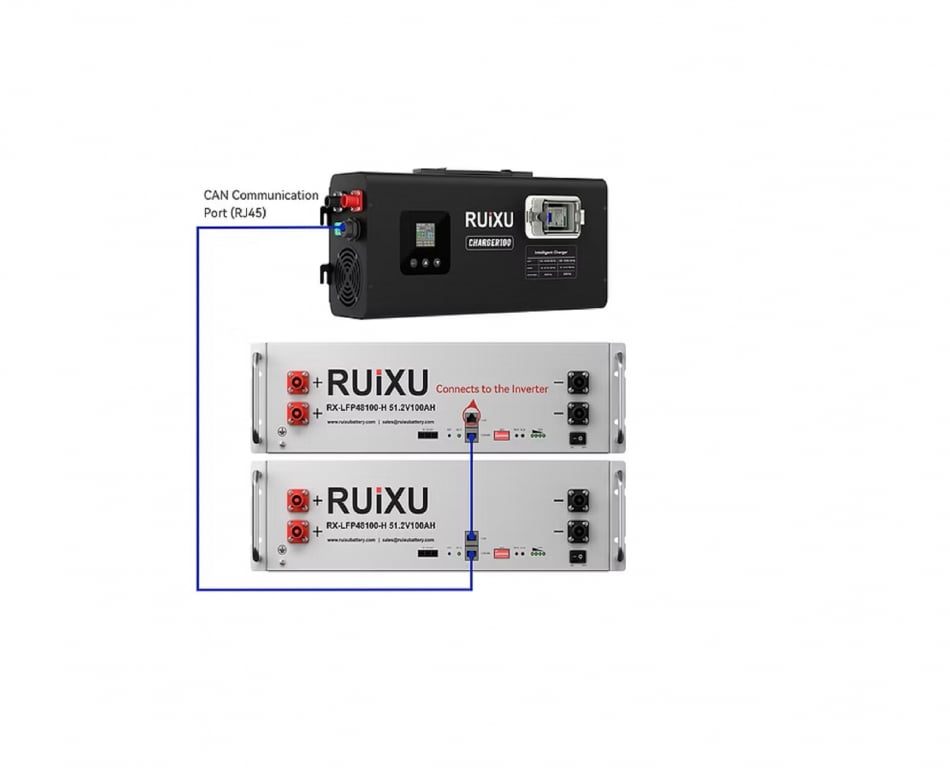

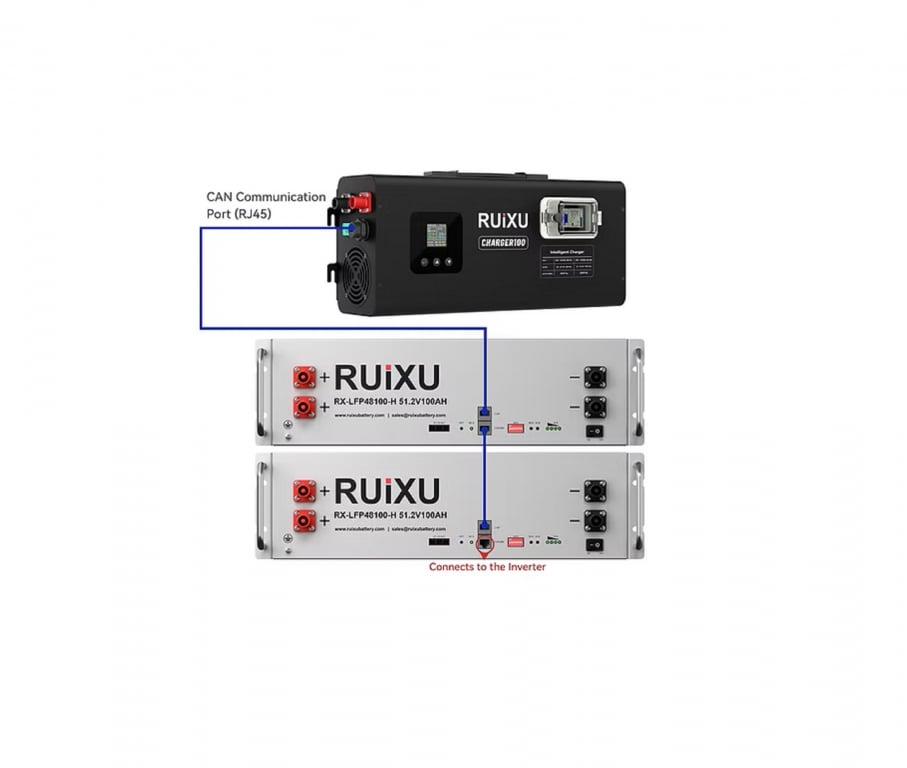

• BMS Communication: CAN (RJ45 Interface)
• Operating Temperature Range: 14°F to 131°F (-10°C to 55°C)
• Storage Temperature Range: 5°F to 140°F (-15°C to 60°C)
• Humidity: 5%-95% relative humidity (non-condensing)
• Ingress Protection: IP20
• Operating Altitude: 0-4921 ft. (0-1500 m)
• Dimensions: 17.72 x 7.48 x 4.72 in
• Weight: 13.2 lbs.
• Warranty: 3 years (only when used indoors)
