Asking Price Per Unit:
$1335.40
NEW
Solartech 7.5kW 380/440V Solar Pumping Inverter
Quantity on Hand2 Units
View Negotiable Terms
Description
Specifications
Supporting Docs
Product Information

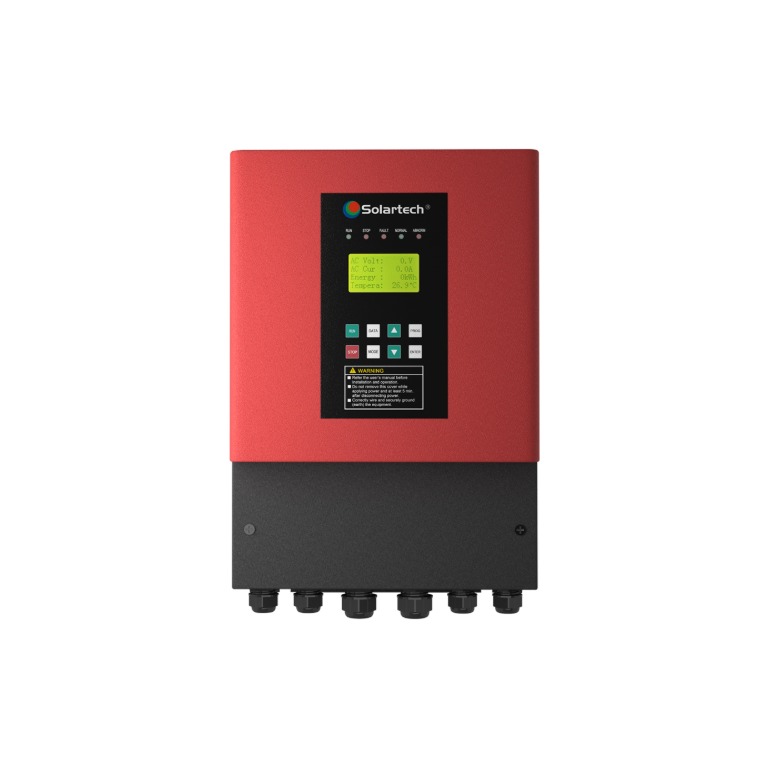

Solartech 7.5kW 380/440V Solar Pumping Inverter
Note: Available in 3kW and 7.5kW Options
Key Features:
- Compatible with submersible pumps, surface pumps, swimming pool pumps using induction motors.
- Patented dynamic VI maximum power tracking (MPPT) algorithm, MPPT efficiency reaches 99%.
- Full automatic operation. 8 years storage capacity for operation data.
- Support soft start of pump. Full motor protections. Optional water level switch to protect overflow and dry running.
Product Features
- Compatible with submersible pumps, surface pumps, swimming pool pumps using induction motors.
- Patented dynamic VI maximum power tracking (MPPT) algorithm; Faster response and good stability. MPPT efficiency re
- Rated AC Output current: 18A
- Full automatic operation. 8 years storage capacity for operation data.
- Support soft start of pump. Full motor protections. Optional water level switch to protect overflow and dry running.
- Good sealing, IP65 protection grade. Ambient temperature: -20~+60℃. Ambient humidity ≤95%. Suitable for harsh outdoor installation
- LCD display, user friendly interface, rich display information
Product Details:
- Manufacturer Part Number: PB7500H-G3
- Power Output: 7500 Watts
- Rated AC Output current: 18A
- Adapting Motor Voltage: 3PH 380 - 440 V
- Weight: 20.28 lb
- Product Dimensions: 16.38 × 10.11 × 6.22 In
- Shipping Dimensions: 18.31 × 13.39 × 9.76 In
