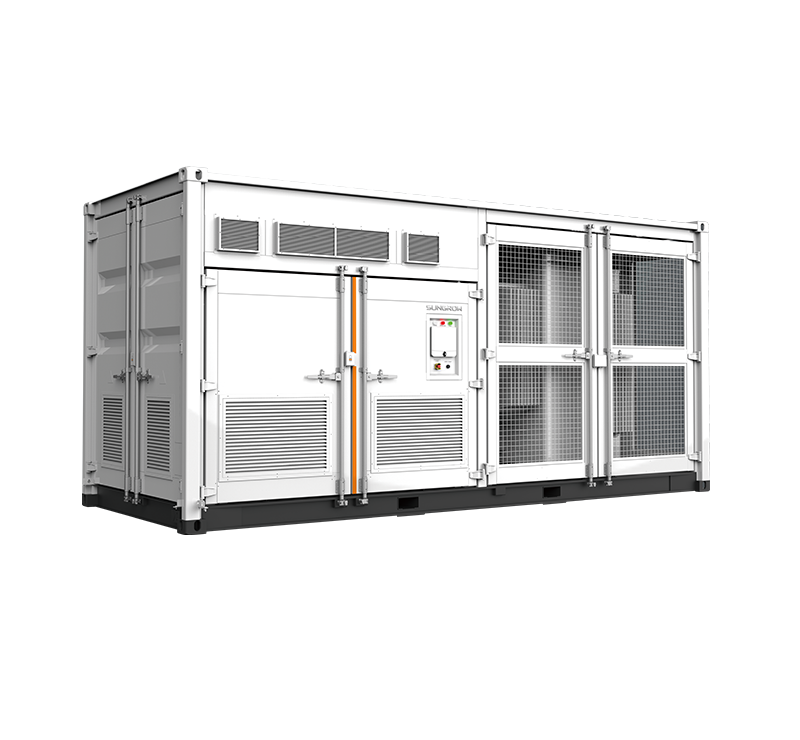

Sungrow 3150kVA 1500Vdc Inverter with Integrated MV Transformer

Sungrow 3150kVA 1500Vdc Inverter with Integrated MV Transformer

Part NoSG3150U-MV
MOQ1 Unit
Shipped & sold bySunhub Managed
Shipping TypeEXW - Ex Works (Place)
LocationElwood, IL
ConditionNew
Asking Price Per Unit:
$70000.00$119000.00
Quantity on Hand20 Units
View Negotiable Terms
Product Information

Sungrow Energy Logo

Sungrow 3150kVA 1500Vdc Inverter with Integrated MV Transformer

Turnkey Station for North America 1500 Vdc System - MV Transformer Integrated

Key Features:

  • Advanced three-level technology, max. inverter efficiency 98.8%, inverter CEC efficiency 98.5 % | Max. DC/AC ratio more than 1.5
  • Integrated current, voltage and MV parameters monitoring function for online analysis and fast trouble shooting
  • Modular design, easy for maintenance
  • Convenient external LCD, Convenient external LCD
  • Grid Support: Grid support including L/HVRT, L/HFRT, active & reactive power control and power ramp rate control

Transformer:

  • Transformer Rated Power: 3150 kVA
  • LV / MV Voltage: 0.63 kV / 34.5 kV

Product Details:

  • Mfr Part Number: SG3150U-MV
  • AC Output Power: 3150 kVA @ 45 ℃ (113 ℉)
  • Max. inverter output current: 2886 A
  • AC Voltage Range: 34.5 kV
  • Max. PV input voltage: 1500 V
  • Weight: 39683.2 lbs
  • Dimensions: 238.5 x 114 x 96 in
