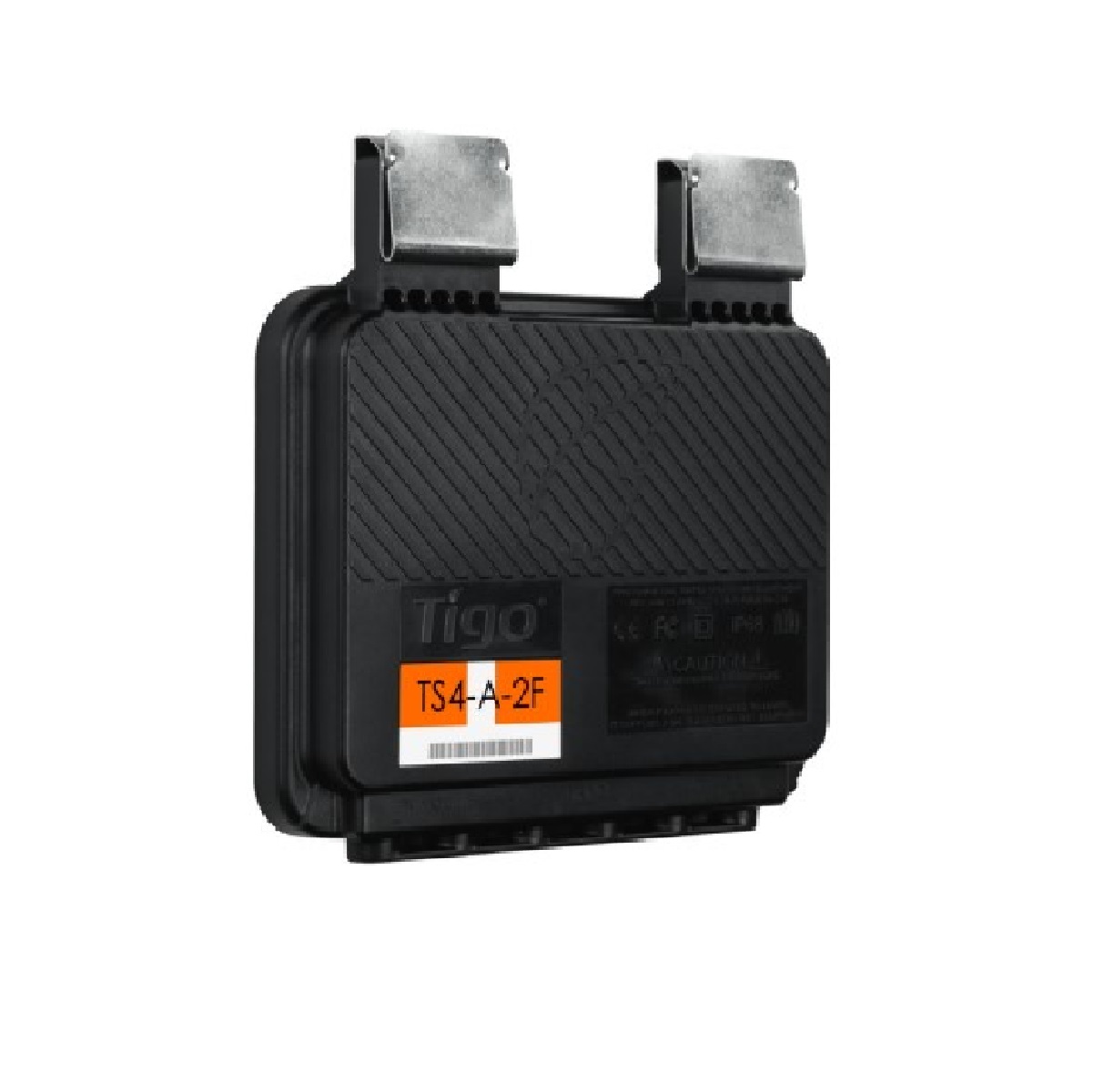

Tigo Module-Level Rapid Shutdown
19 pallets of 380EA, 20 units each per box
The Tigo TS4-A-2F is a reliable, cost effective rapid shutdown solution that meets the latest module level shutdown requirements, including NEC 2017/2020. The TS4-A-2F is both IEC and UL certified for global acceptance. It is UL PVRSS certified for connectivity with the largest network of inverters, many of which have a built in RSS transmitter. By connecting to two modules, the TS4-A-2F reduces labor time and enables 16% fewer connections on a 14 panel string compared to single channel MLPE.
Key Features:
- Rapid Shutdown
- Single MLPE connects to 2 PV modules
- IEC and UL certified
- Meets US NEC rapid shutdown safety requirements
- UL PVRSS certified with the largest network of inverters
- up to 1400W (700W per channel)
- 16-80V, up to 25A (per channel)
- MC4 (standard) connectors
- Snaps to module frame for easy mounting
- Does not require ground wire
- PLC communication
- 25-year warranty
Product Details:
- Manufacturer: Tigo
- Part Number: Tigo Opt_TS4-A-2F
- Module Type: Rapid Shutdown Device
- Dimension: 5.4 x 5.5 x 0.9 in
- Weight: 1.3 Lbs
- 1 Box: 20 Pcs
