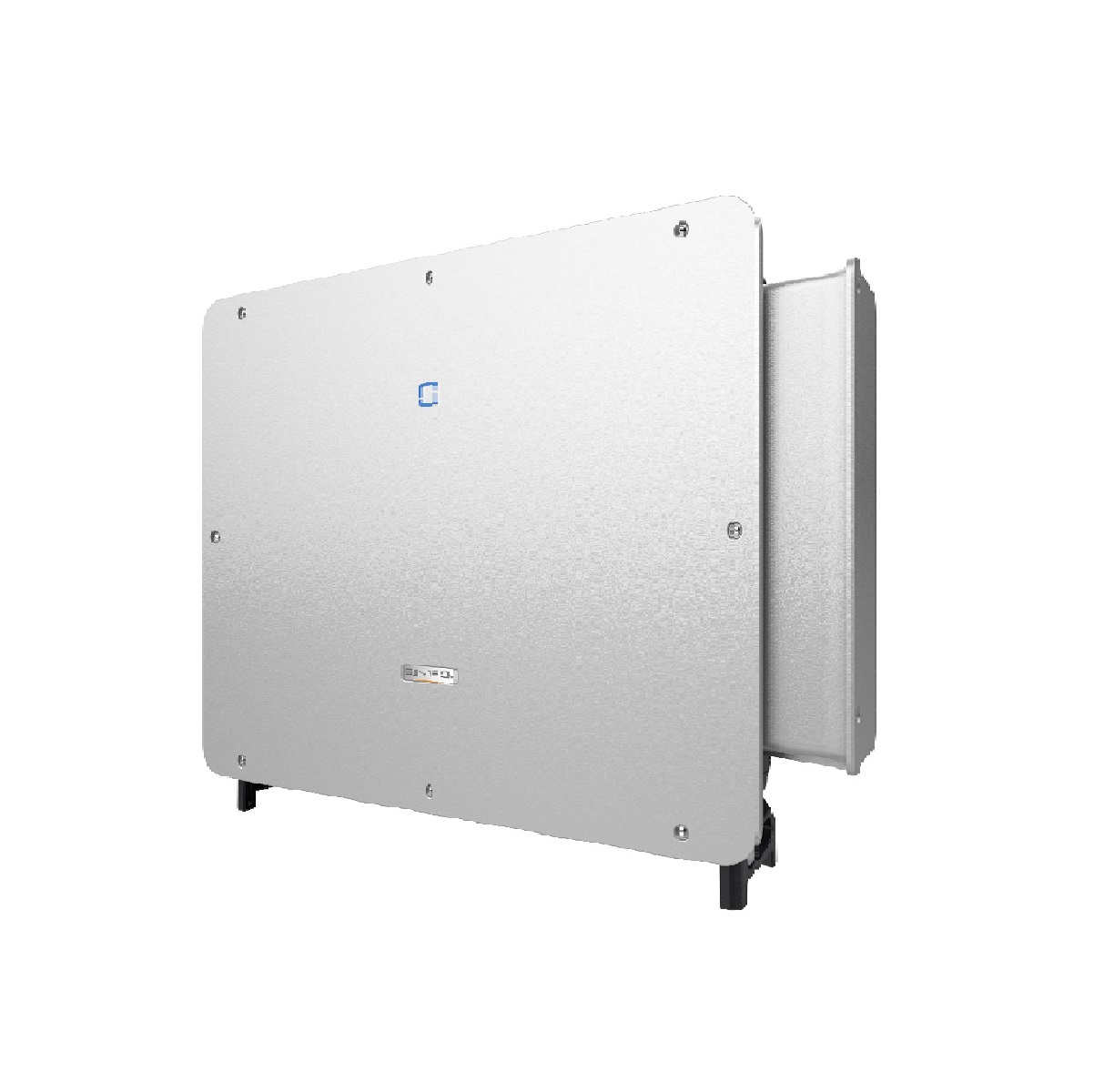

Sungrow 200kVA Three Phase String Inverter

Sungrow 200kVA Three Phase String Inverter

Multi-MPPT String Inverter for 1500 Vdc System

Key Features:

• Up to 12 MPPTs with max. efficiency 98.8%
• 20A per string, compatible with 500Wp+ module
• Fuse free design with smart string current monitoring.
• Reactive power response time < 30 ms
• 2 strings per MPPT, no fear of string reverse connection

Product Details:

• Mfr Part Number: SG200HX-US
• AC Output Power: 200 kVA @ 40°C
• Max. AC output current: 193 A
• Nominal AC voltage: 3 / PE, 600 V
• AC voltage range: 528 V – 660 V
• Max. PV input voltage: 1500 V
• Weight: 269 lbs
• Dimensions: 45.9 x 34.3 x 14.2 in
