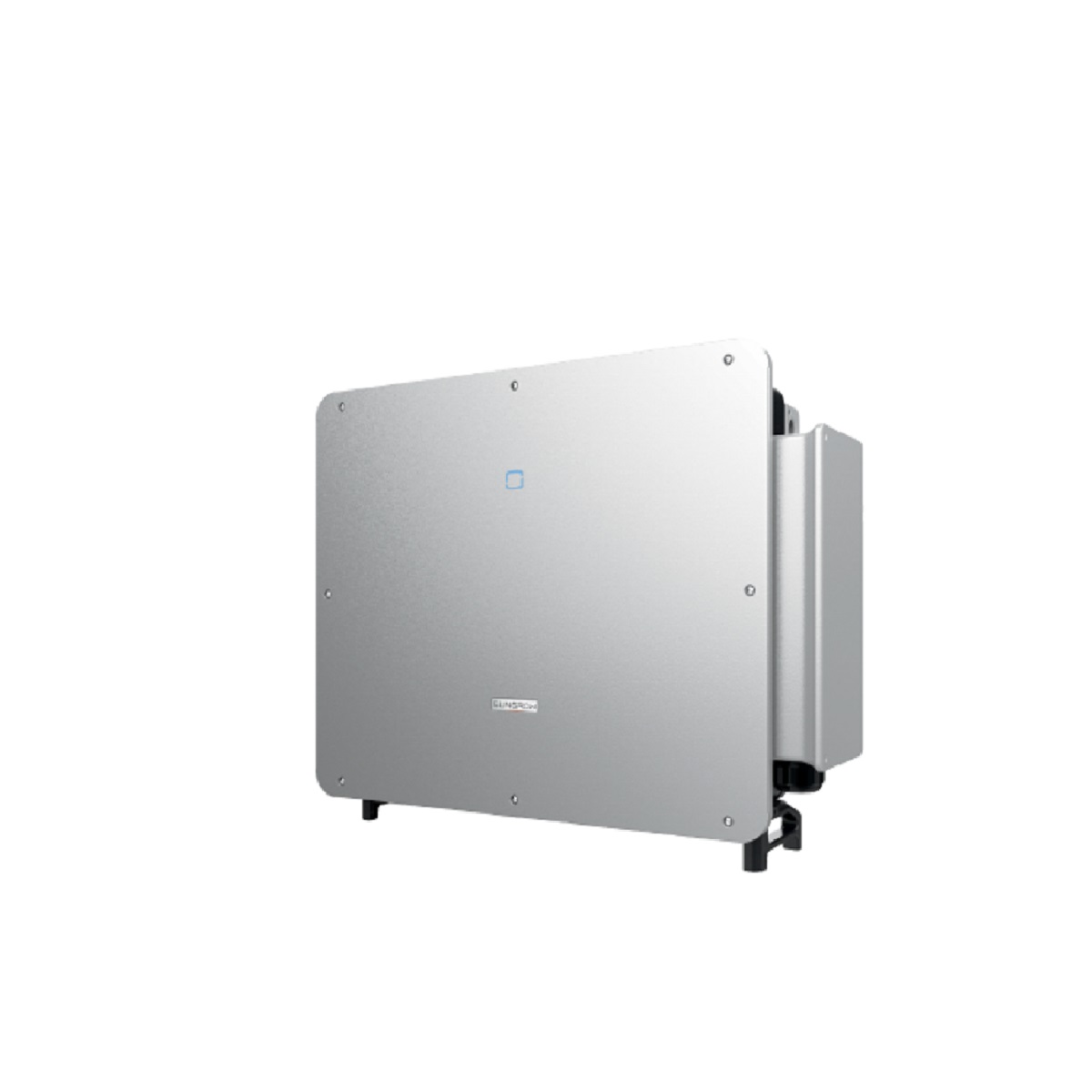

Sungrow 352kVA Three Phase String Inverter

Sungrow 352kVA Three Phase String Inverter

12 or 16 MPPT available

Key Features:

• Up to 16 MPPTs with max. efficiency 99%
• 20A per string, compatible with 500Wp+ module
• Reactive power response time < 30 ms
• 2 strings per MPPT, no fear of string reverse connection

Product Details:

• Mfr Part Number: SG350HX-US
• AC Output Power: 352 kVA @ 30°C / 320 kVA @ 40°C
• Max. AC output current: 254 A
• Nominal AC voltage: 3 / PE, 800 V
• AC voltage range: 704 V – 880 V
• Max. PV input voltage: 1500 V
• Weight: 269 lbs
• Dimensions: 45.9 x 34.3 x 14.2 in
